| Parameter | Value |
|---|---|
| External dimensions | 13×7×2 mm |
| Fiber head diameter | NA |
| Fiber head material | Stainless steel |
| Fiber cable outer/core | Φ1.0 / Φ0.5 |
| Cable length | 2M |
| Bending radius | R1 |
| Sensing distance | 130MM (LONG: 140MM) |
| Fiber type | Mounting type, through-beam |
| Light exit | Side exit |
| Tail connector | Plastic |
| Cuttable | Yes |
| Weight | 4.54g |
| Temp. range | -20°C ~ +70°C |

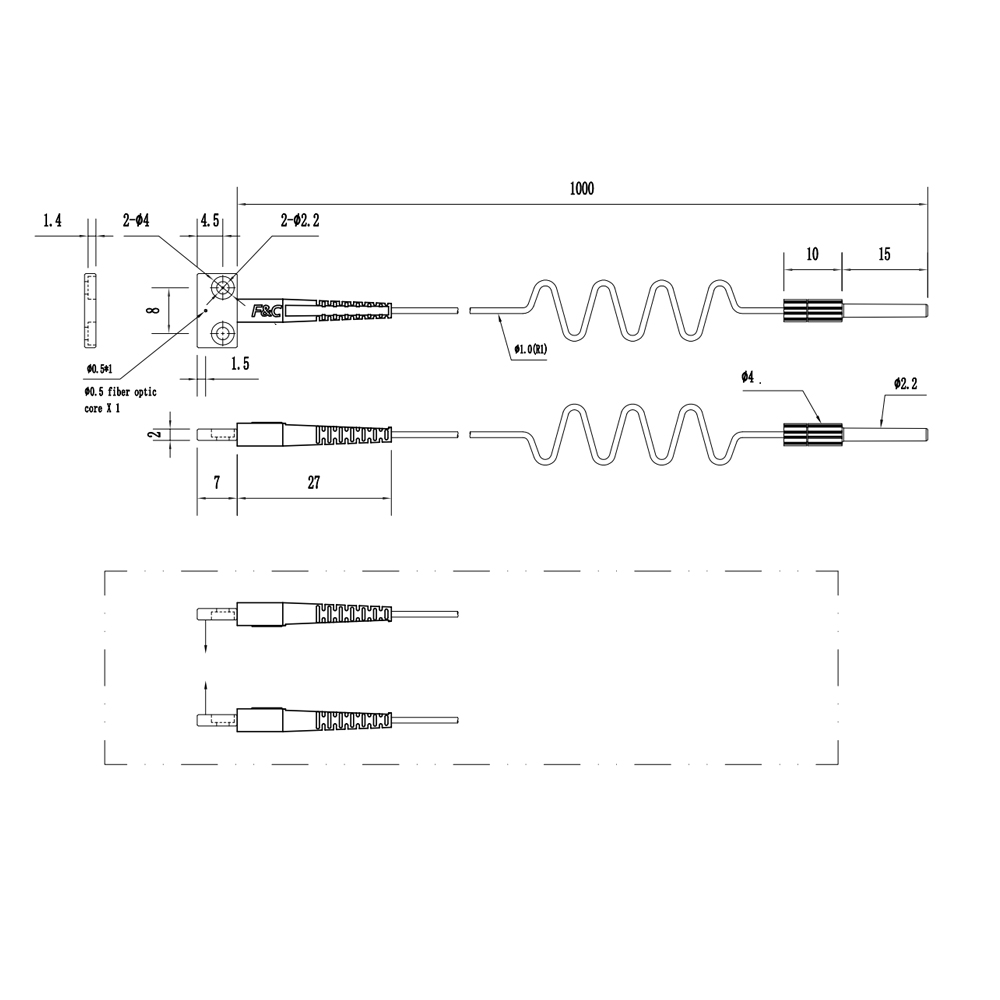

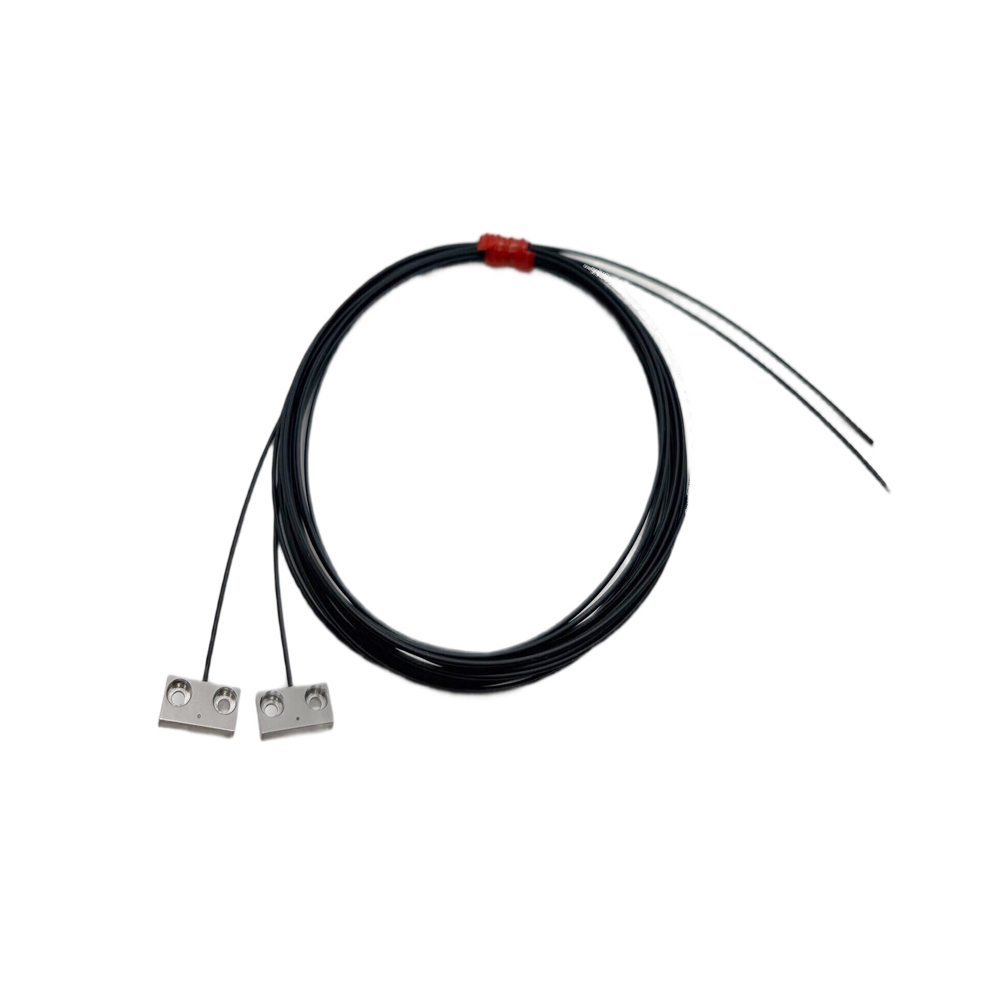

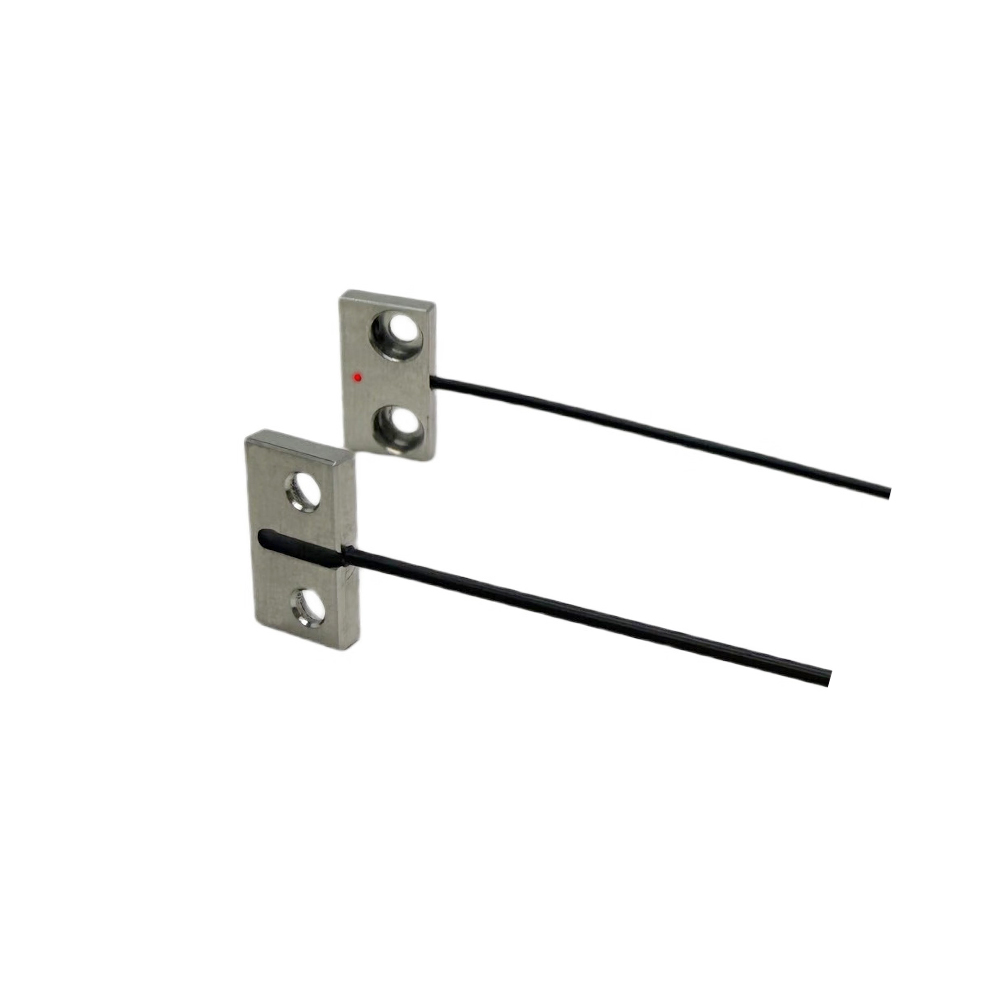

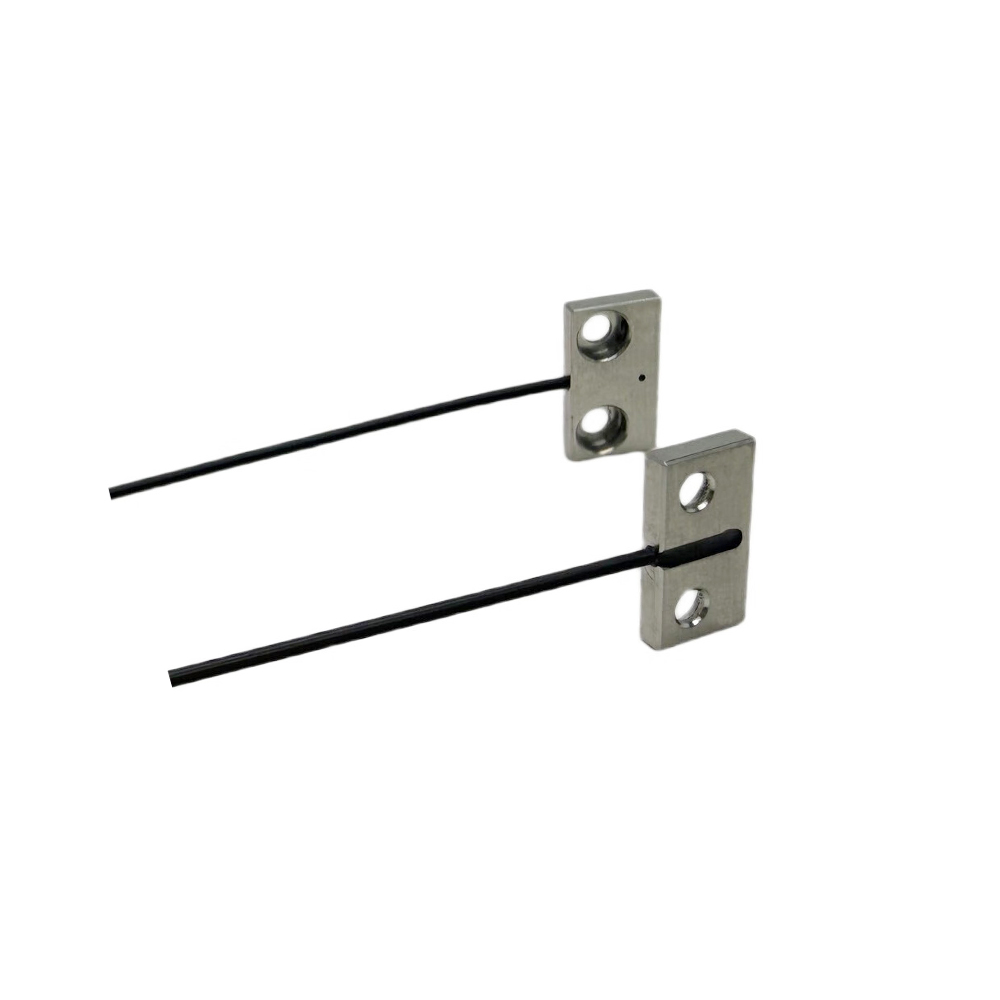

FFTSW-53TZ 2M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
External dimensions | 13×7×2 mm |
Fiber head diameter | NA |
Fiber head material | Stainless steel |
Fiber cable outer/core | Φ1.0 / Φ0.5 |
Cable length | 2M |
Bending radius | R1 |
Sensing distance | 130MM (LONG: 140MM) |
Fiber type | Mounting type, through-beam |
Light exit | Side exit |
Tail connector | Plastic |
Cuttable | Yes |
Weight | 4.54g |
Temp. range | -20°C ~ +70°C |
