FFTC16-310TZ Through-beam right-angle fiber optic cable

Comprehensive Product Overview & Application Guide

Engineered for Precision: Structure and Design

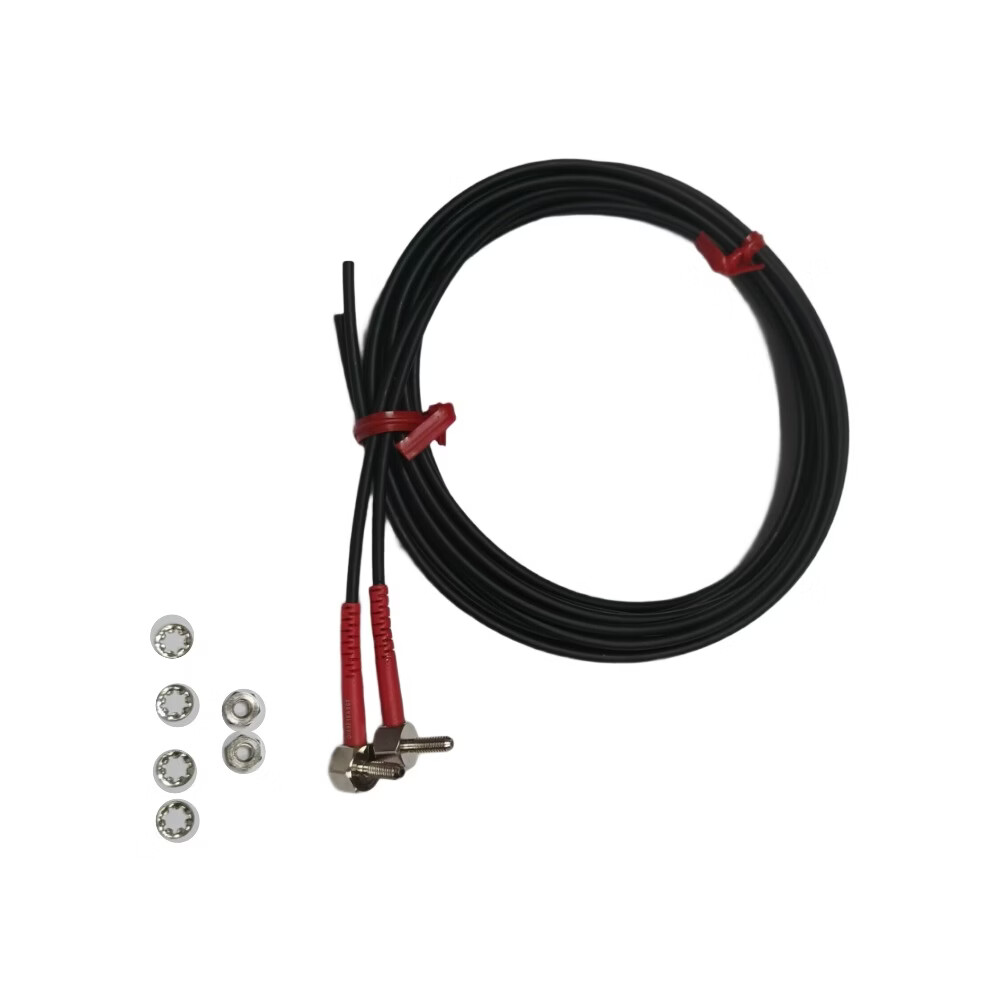

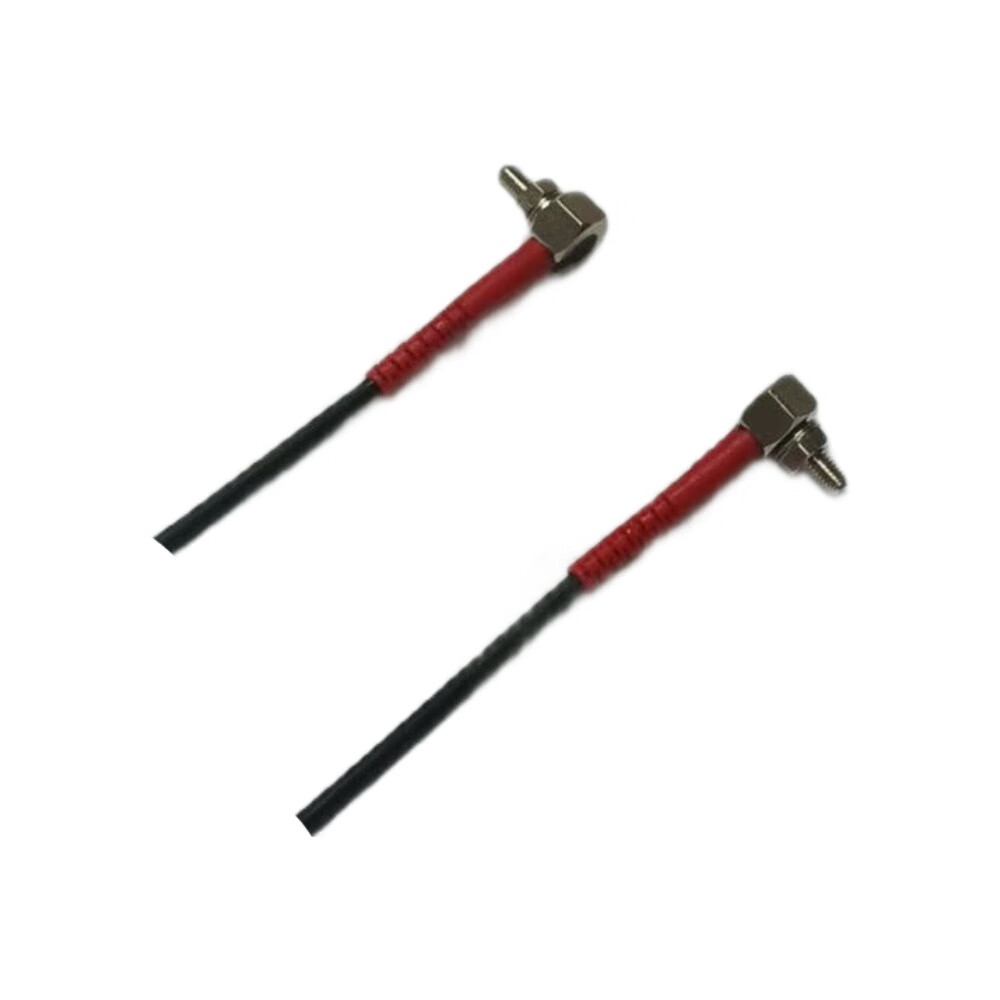

The FFTC16-310TZ through-beam right-angle fiber optic cable represents a significant leap in precision sensing for physically restricted environments. Designed with a specialized right-angle cable exit, this component effectively minimizes the required installation footprint within complex machinery. When handling the ultra-lightweight 12.32g assembly, technicians will immediately notice the precise machining of the right-angle exit, a thoughtful structural configuration that prevents accidental snagging and mechanical interference. This makes it an impeccable choice for extremely tight industrial setups where standard straight-cable sensors simply cannot fit. Beyond its physical profile, this sensor delivers exceptional detection performance. Utilizing a highly efficient through-beam mechanism, it guarantees precise, long-distance object detection up to 400mm under standard operation, and an impressive 500mm in long-range mode. The ultra-compact M3 fiber head diameter further enhances its ability to be mounted in micro-clearance zones, ensuring that even the most intricate machinery can benefit from advanced optical sensing without compromising on spatial efficiency.

Uncompromising Durability and Material Integrity

Industrial environments demand components that can withstand constant physical stress and temperature fluctuations. The sensing head is meticulously crafted from premium stainless steel, offering a cool, smooth metallic finish that resists particulate buildup while providing unyielding protection against mechanical impact, vibration, and corrosive elements commonly found in heavy-duty production facilities. Complementing the hardened head is the highly resilient fiber optic cable, which boasts an R5 bending radius. This extreme flexibility provides a distinctively pliable, supple feel to the cable, allowing it to easily snake through complex mechanical joints without the stiff resistance or signal degradation found in standard optical wires. Furthermore, the unit is engineered to perform flawlessly across a wide temperature spectrum, maintaining absolute stability from a freezing -20°C up to a scorching +70°C. Backed by multiple industry patents and stringent national safety certifications, this fiber optic sensor guarantees industrial-grade reliability, ensuring long-term operational stability and reducing the need for frequent maintenance replacements.

Effortless Installation and Routing Adaptability

Time is a critical resource during equipment assembly and maintenance. To address this, the FFTC16-310TZ is designed for maximum installation adaptability. The 1-meter fiber cable is fully cuttable, empowering technicians to tailor the length precisely to the specific requirements of their machinery layout. Whether retrofitting older equipment or designing modern automated cells, the precise Φ2.2 outer and Φ0.265*16 core dimensions ensure optimal light transmission regardless of the customized length. This eliminates the clutter of excess cabling and reduces the risk of operational hazards. Additionally, the superior structural integrity of the outer cable completely removes the necessity for an external protective conduit tube, streamlining the entire setup process. This plug-and-play adaptability not only accelerates initial deployment but also simplifies ongoing system modifications, offering unparalleled flexibility for custom equipment builders and system integrators seeking efficient, clean routing solutions.

Versatile Industrial Applications

The unique combination of a compact right-angle design, long-distance sensing, and rugged construction makes this fiber optic cable highly versatile across various demanding sectors.

• Automated Production Lines: Ideal for detecting product presence, alignment, and counting on high-speed conveyor systems where space is at an absolute premium.
• Robotic Arms and Articulated Machinery: The flexible R5 bending radius allows smooth integration into moving joints without risking cable fatigue or structural failure over thousands of cycles.
• Semiconductor and Electronics Manufacturing: Provides the meticulous precision required for positioning micro-components in confined processing chambers.
• Material Handling Systems: Facilitates accurate dimensional checks and positional verification in automated storage and retrieval systems.
• Packaging Equipment: Reliably identifies materials as they pass through dense machine architectures, ensuring consistent packaging quality.

Procurement, Support, and Long-Term Value

Sourcing reliable sensing components directly impacts project timelines and overall profitability. By acquiring the FFTC16-310TZ directly from the manufacturing source, facility managers and procurement specialists benefit from a highly streamlined supply chain. This direct-access model guarantees rapid delivery schedules, ensuring that critical production lines experience minimal downtime during upgrades or repairs. Furthermore, it offers a highly competitive pricing structure that significantly optimizes project budgets without compromising on technical excellence. We understand the importance of rigorous evaluation before full-scale implementation. Therefore, comprehensive support is provided for sample requests and on-site testing protocols. This allows engineering teams to thoroughly assess the sensor's performance within their specific operational environment, ensuring total confidence in the product's capabilities before committing to larger-scale integration. Our dedicated technical support team is always available to assist with integration queries, ensuring a smooth transition from initial testing to full-scale deployment.
