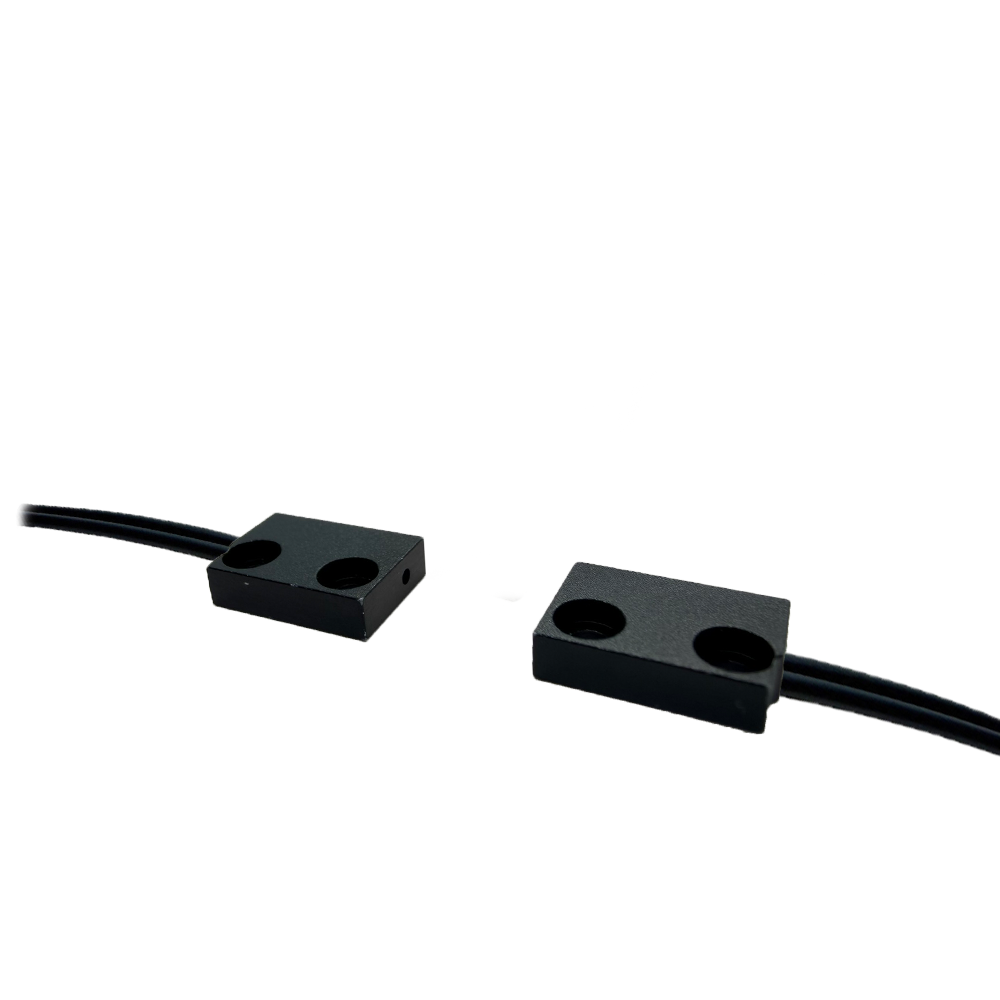

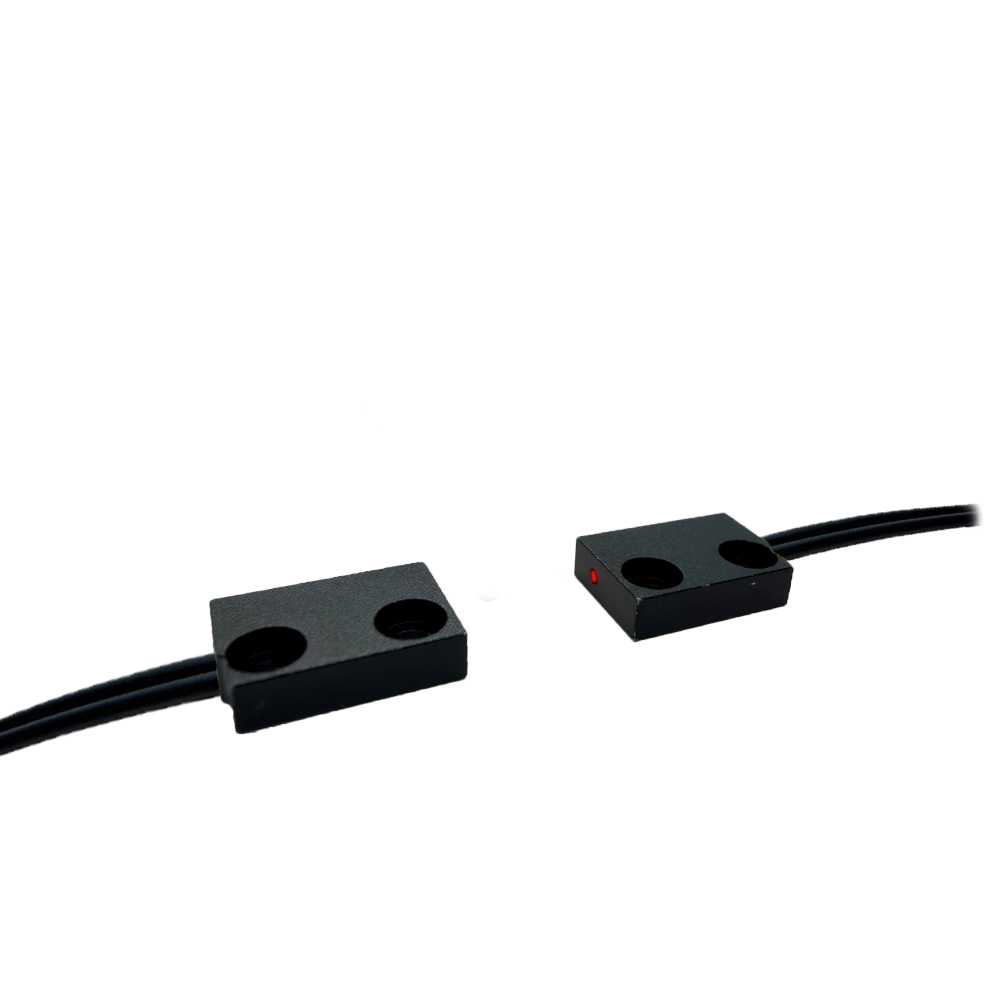

FFT-Z8H 2M Mounting bracket through-beam fiber optic cable

Comprehensive Product Overview & Operational Capabilities

The FFT-Z8H 2M mounting bracket through-beam fiber optic cable is engineered to deliver exact detection capabilities in the most restrictive industrial environments. Designed specifically for complex automation frameworks, this sensing component bridges the gap between mechanical movement and electrical control. By utilizing a highly focused light beam, it acts as a critical feedback mechanism for machinery that requires absolute precision. The physical construction prioritizes longevity and ease of integration, ensuring that facility managers and procurement specialists can rely on consistent performance across multiple production cycles without frequent replacements.

Precision Detection Performance

Achieving reliable target identification in fast-paced manufacturing requires exceptional optical performance. This through-beam configuration offers a standard sensing distance of 500mm, which can be extended to 600mm in long-range mode. This extended reach allows engineers to mount the sensor heads safely away from hazardous moving parts while maintaining a strong, uninterrupted signal. The front-exit light mechanism is finely tuned to penetrate airborne particulates often found in industrial settings. It precisely registers the presence or absence of micro-components, thin films, or irregular shapes, drastically reducing false positive triggers and ensuring that automated sequences proceed without unnecessary interruptions.

Material Durability & Tactile Craftsmanship

The tactile craftsmanship of the FFT-Z8H is immediately apparent in its aluminum silver fiber head. The cool, rigid metallic casing provides exceptional resistance against physical impacts, daily vibrations, and accidental abrasions on the factory floor. Encased within this protective shell is a specialized fiber cable featuring a Φ2.2 outer diameter and a Φ1 core. The outer polymer jacket feels smooth yet highly resilient, formulated to withstand continuous mechanical stress. Operating flawlessly across a temperature range of -20°C to +70°C, the cable remains pliable in freezing storage facilities and maintains its structural integrity near heat-generating motors. This thermal resilience prevents the internal fibers from becoming brittle or degrading over time.

Installation Adaptability & Spatial Integration

Space is a premium commodity in modern machinery. With ultra-compact external dimensions of just 12 × 8.5 × 3 mm, this sensor head integrates effortlessly into extremely tight clearances where traditional sensors cannot fit. The integrated mounting bracket design eliminates the need for secondary fixtures, allowing technicians to bolt the unit directly onto machine chassis frames for immediate alignment. Furthermore, the 2-meter cable is entirely cuttable. Installers can measure and trim the line to the exact required length, preventing excess coiled wire that could snag on moving belts or gears. To accelerate the design phase, comprehensive 3D and CAD drawings are available, enabling engineers to digitally map the sensor's placement before any physical assembly begins. The R25 bending radius ensures the cable can navigate sharp corners within equipment housings without causing micro-fractures to the internal optical core.

Electrical Stability for Continuous Operation

Beyond physical durability, the internal electrical characteristics of the sensing system are optimized for long-term reliability. The design incorporates low power consumption and minimal leakage current, which is vital when hundreds of sensors are wired into a single programmable logic controller (PLC) network. This electrical stability guarantees that the signal transmission remains clear and immediate, free from the degradation that can occur in environments with heavy electromagnetic interference. The result is a dependable, continuous flow of data that keeps automated systems synchronized and operating at peak efficiency.

Targeted Industrial Applications

• Smart Manufacturing Lines: Verifying the exact placement and orientation of small parts in automated assembly cells, ensuring every component is correctly positioned before the next mechanical step.
• Packaging Machinery: Detecting the passage of rapid-moving cartons, transparent plastic films, and reflective foils on high-speed conveyor systems without missing a single count.
• Plastics Processing Equipment: Monitoring injection molding outputs and material feeds in environments subjected to frequent temperature fluctuations and mechanical vibrations.
• Electronics Assembly: Confirming the presence of delicate printed circuit boards (PCBs) or micro-chips in cleanroom environments, utilizing the non-contact beam to prevent physical damage to fragile components.

Procurement, Testing & Quality Assurance

Sourcing technical components requires confidence in both the product and the support network behind it. To facilitate smooth procurement processes, buyers can request sample units for rigorous in-house testing, ensuring absolute compatibility with existing control systems. For facilities looking to upgrade legacy equipment, comprehensive cross-reference data is provided to identify direct replacements quickly. Every single unit, weighing a mere 17.23g, undergoes strict calibration against standardized test objects before shipment. This exhaustive quality control is backed by industry-recognized certifications, guaranteeing that each cable performs exactly to its stated specifications. Coupled with rapid delivery protocols and dedicated technical support, this ensures that production lines experience minimal downtime during installation or maintenance phases.
