FFRW-620TZ Coaxial right-angle fiber optic cable

Comprehensive Product Overview & Application Capabilities

Engineered for Precision: Core Materials and Longevity

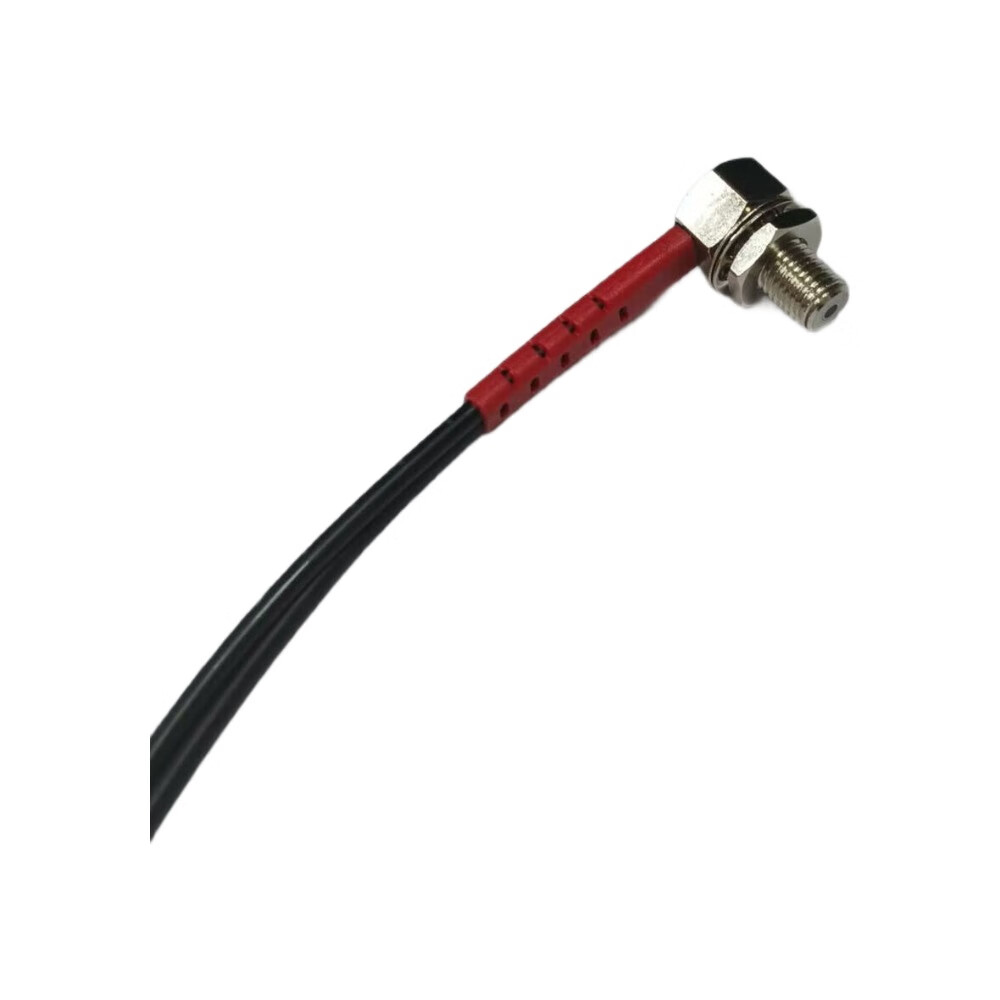

The FFRW-620TZ coaxial right-angle fiber optic cable is constructed to endure the rigorous demands of continuous industrial operations. Featuring a heavy-duty M6 stainless steel sensor head, the unit provides exceptional resistance to physical impacts, continuous machine vibrations, and the corrosive elements commonly found in manufacturing environments. The tactile durability and unyielding metallic threads of the housing ensure that the internal optics remain perfectly aligned, preventing thread stripping during installation and maintaining focus even under mechanical stress. Inside this protective shell, the cable utilizes a premium optical core featuring a Φ2.2mm outer diameter and a highly transparent Φ1mm inner core. This precise construction maximizes light transmission efficiency while minimizing signal degradation over the cable's entire length. By utilizing these specialized, industrial-grade materials, the sensor delivers a prolonged operational lifespan, significantly reducing the frequency of maintenance replacements and minimizing costly equipment downtime for automated production lines.

Optimized for Confined Spaces: Flexible Installation Design

Modern automation machinery often demands complex internal layouts with highly restricted spatial footprints. This fiber optic sensor addresses these architectural challenges through several highly specific design choices that empower facility engineers to maximize their available space:

• R2 Ultra-Small Bending Radius: Unlike standard optical cables that risk micro-fractures when bent, this unit can be routed through incredibly tight corners (down to a 2mm radius) without compromising light transmission stability or risking sudden signal loss.

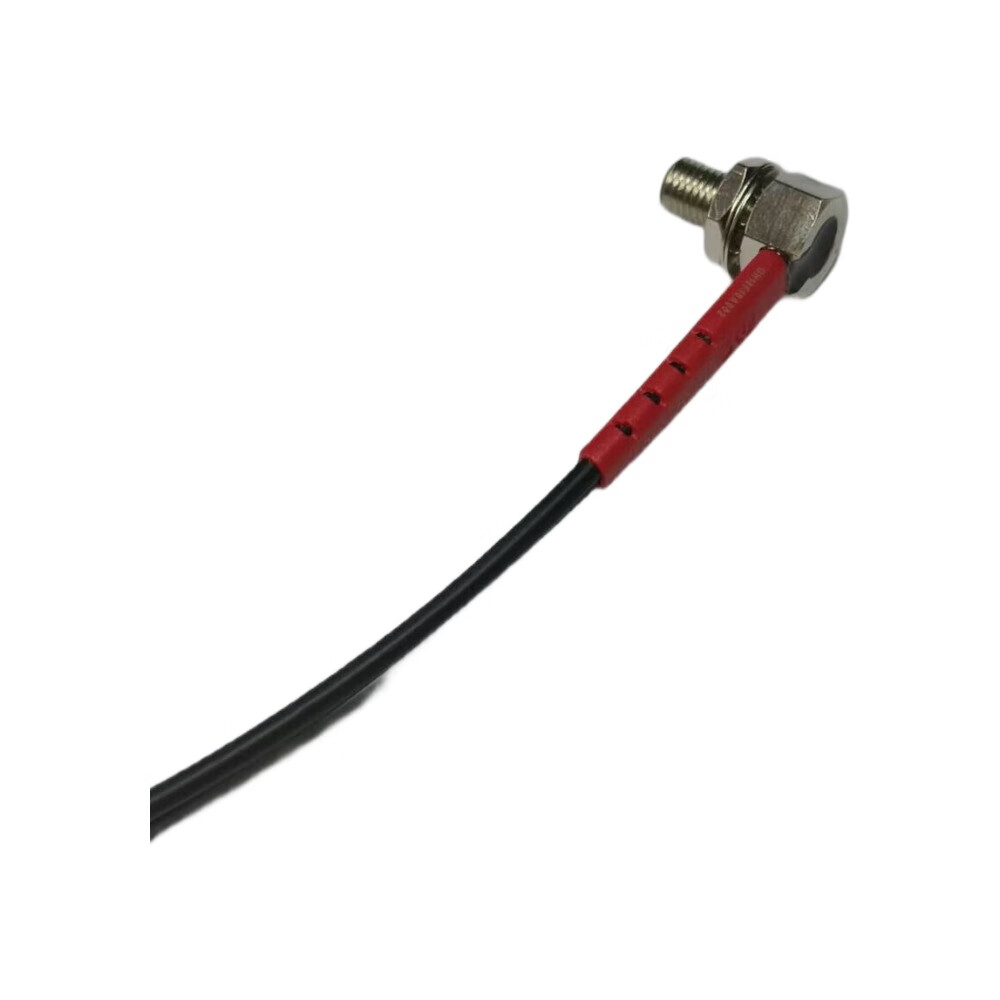

• Right-Angle Front Exit Configuration: By directing the cable exit at a precise right angle, the sensor head can be mounted flush against bulkheads or within shallow brackets. This eliminates the need for deep clearance behind the mounting point, solving a common headache in compact machine design.
• Conduit-Free Routing: Built with an inherently durable outer jacket, the cable operates reliably without requiring a rigid, bulky protective conduit tube. This allows for smooth, flexible integration into moving robotic arms or compact track systems where every millimeter matters.

Advanced Detection Performance in Automation

Accuracy in micro-object detection is the critical foundation for maintaining high throughput in automated systems. Utilizing a sophisticated coaxial, diffuse reflective optical arrangement, this sensor aligns the emitting and receiving light axes perfectly. Unlike standard side-by-side fiber configurations that suffer from near-field blind spots, this coaxial alignment enables the immediate detection of minute targets regardless of the angle at which they pass the sensor face. The unit achieves a highly stable sensing distance of 130mm, which can be extended to 140mm for long-range requirements. This extended reach allows engineers to mount the sensor head safely away from hazardous moving mechanical parts, preventing accidental collisions while maintaining precise target recognition. The resulting reduction in false positives directly translates to smoother operational workflows, higher yield rates, and fewer manual interventions on the factory floor.

Field-Ready Customization and Integration

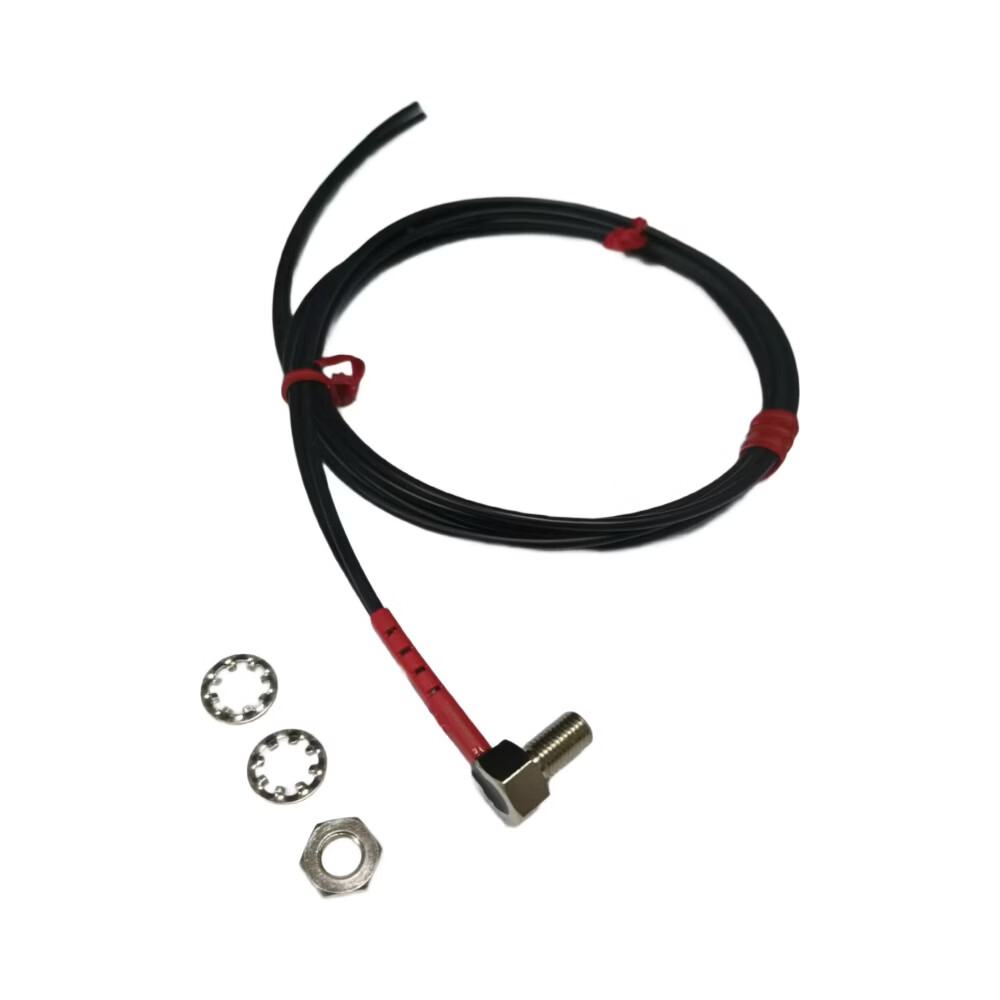

Every industrial installation presents unique wiring challenges, which is why adaptability is built directly into the core of this product. The sensor is supplied with a standard 2-meter cable length, providing ample reach for connecting peripheral sensors to centralized control cabinets. More importantly, the fiber is fully cuttable on-site. Technicians experience a clean, precise snap when modifying the cable with standard fiber cutters, ensuring a perfect optical face without fraying. This empowers installers to trim the cable to the exact required length, preventing excess loops of wire that can clutter control panels or become dangerously tangled in moving machinery. Weighing a mere 21.71 grams, the lightweight nature of the assembly minimizes drag on dynamic cable carriers. Furthermore, the broad operational temperature range of -20°C to +70°C ensures consistent performance across diverse thermal environments, from chilled food processing facilities to heat-intensive plastic molding plants.

Versatile Industry Applications

The combination of a compact form factor, durable materials, and precise coaxial detection makes this fiber optic cable highly suitable for a wide array of demanding industrial sectors. In smart manufacturing facilities, it functions as a critical checkpoint, reliably monitoring the presence, absence, and exact orientation of small electronic components on high-speed assembly lines. Within the packaging machinery sector, the sensor easily navigates the cramped interiors of labeling machines to verify the passage of thin, transparent films or rapidly moving cardboard flaps without hesitation. Additionally, in plastic injection molding machinery, the sensor's thermal resilience and precise targeting allow it to confirm the successful ejection of tiny, intricate plastic parts from complex molds, instantly signaling the machine to proceed and thereby preventing catastrophic tool damage and ensuring continuous, efficient production cycles.

Comprehensive Engineering Support and Documentation

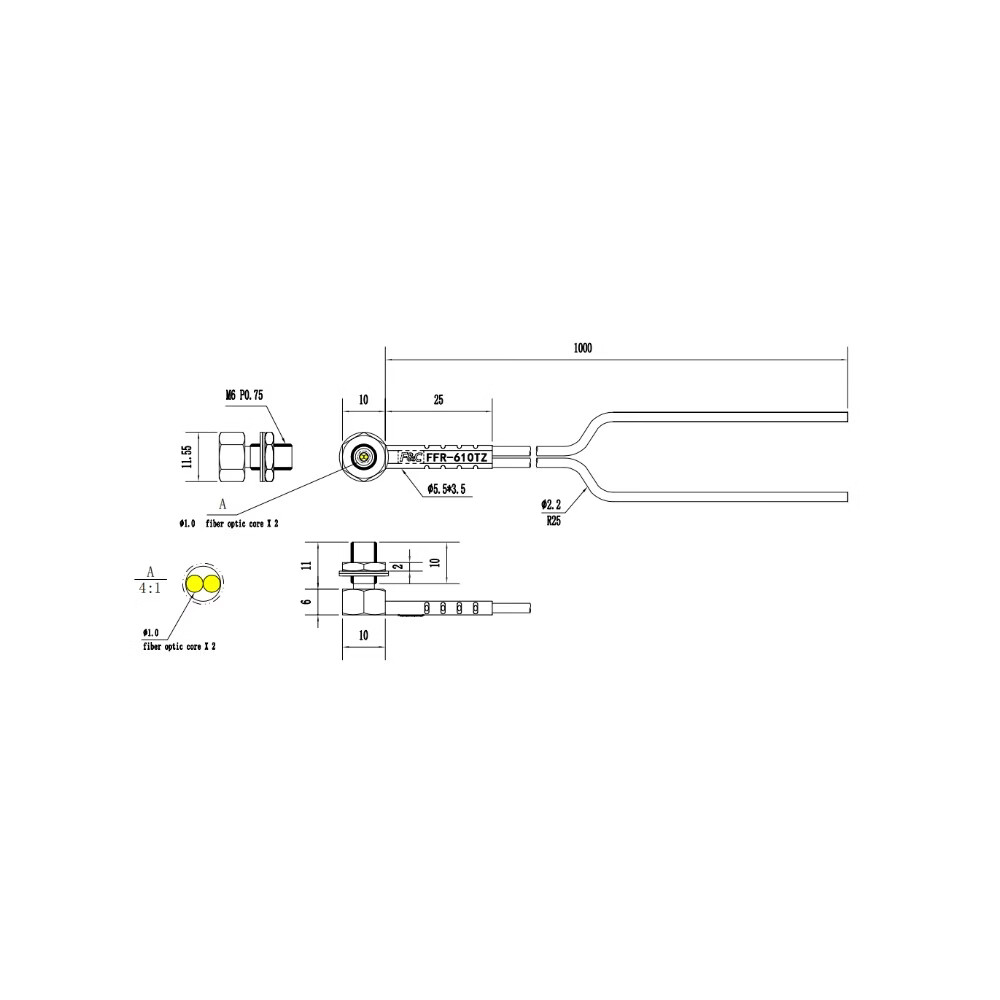

Selecting the right sensor involves more than just evaluating physical specifications; it requires total confidence in system integration and long-term reliability. To facilitate a smooth, risk-free evaluation process for procurement professionals and system integrators, comprehensive technical documentation is readily available. Engineering teams can access highly detailed 3D models and precise CAD drawings, allowing them to virtually test the sensor's fit within their proprietary machine designs before ever committing to physical prototypes. Alongside these digital assets, complete product specification sheets and rigorous quality testing certifications are provided. This extensive support infrastructure accelerates the design phase, mitigates unexpected integration risks, and ensures that the final automated system meets all performance, dimensional, and safety standards required by modern industry regulations.
