| Parameter | Value |
|---|---|
| Number of fiber heads | 6 |
| Fiber head diameter | Φ1.5 |
| Fiber cable outer/core | Φ1.0 / Φ0.5*2 |
| Cable length | 1M |
| Bending radius | R10 |
| Conduit tube | Not required |
| Red sleeve | Yes |
| Sensing distance | 50MM (LONG: 60MM) |
| Fiber type | Multi-head, diffuse reflective |
| Head material | Stainless steel |
| Light exit | Front exit |
| Tail connector | Stainless steel |
| Cuttable | No |
| Weight | 15.73g |
| Temp. range | -20°C ~ +70°C |

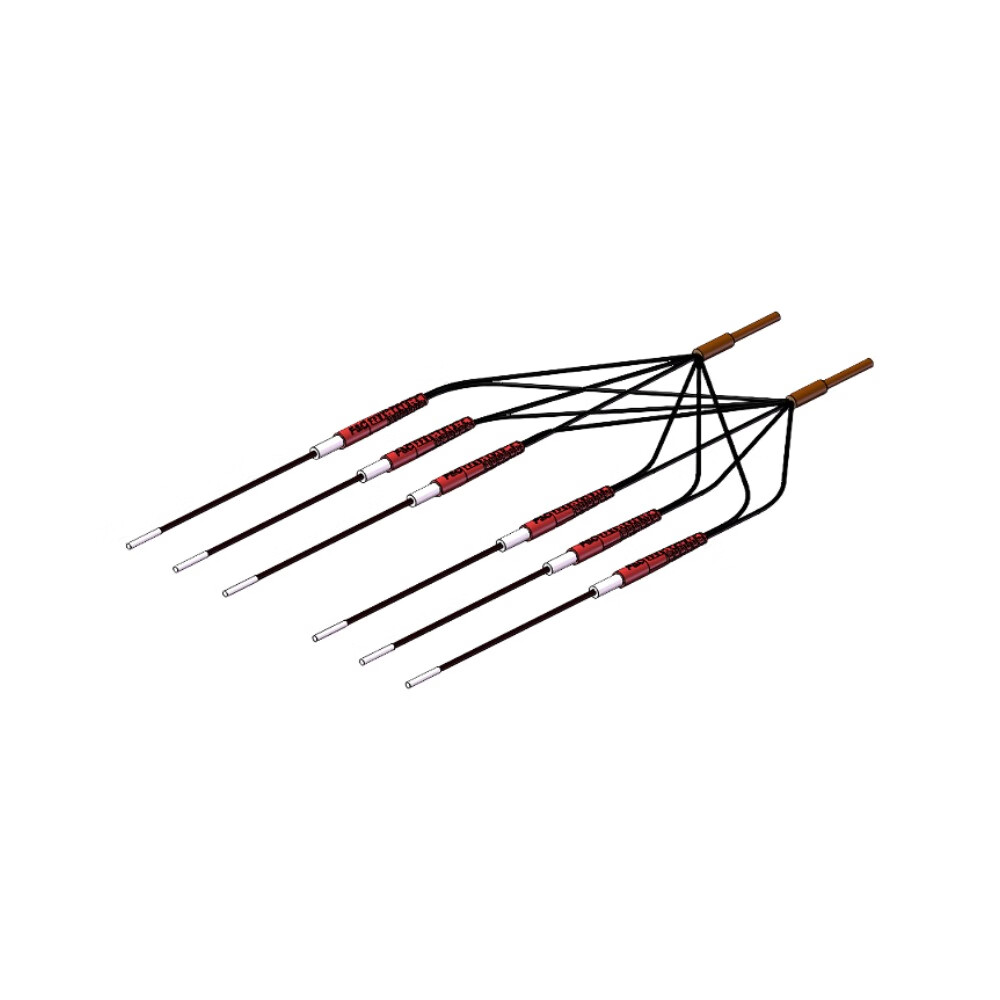

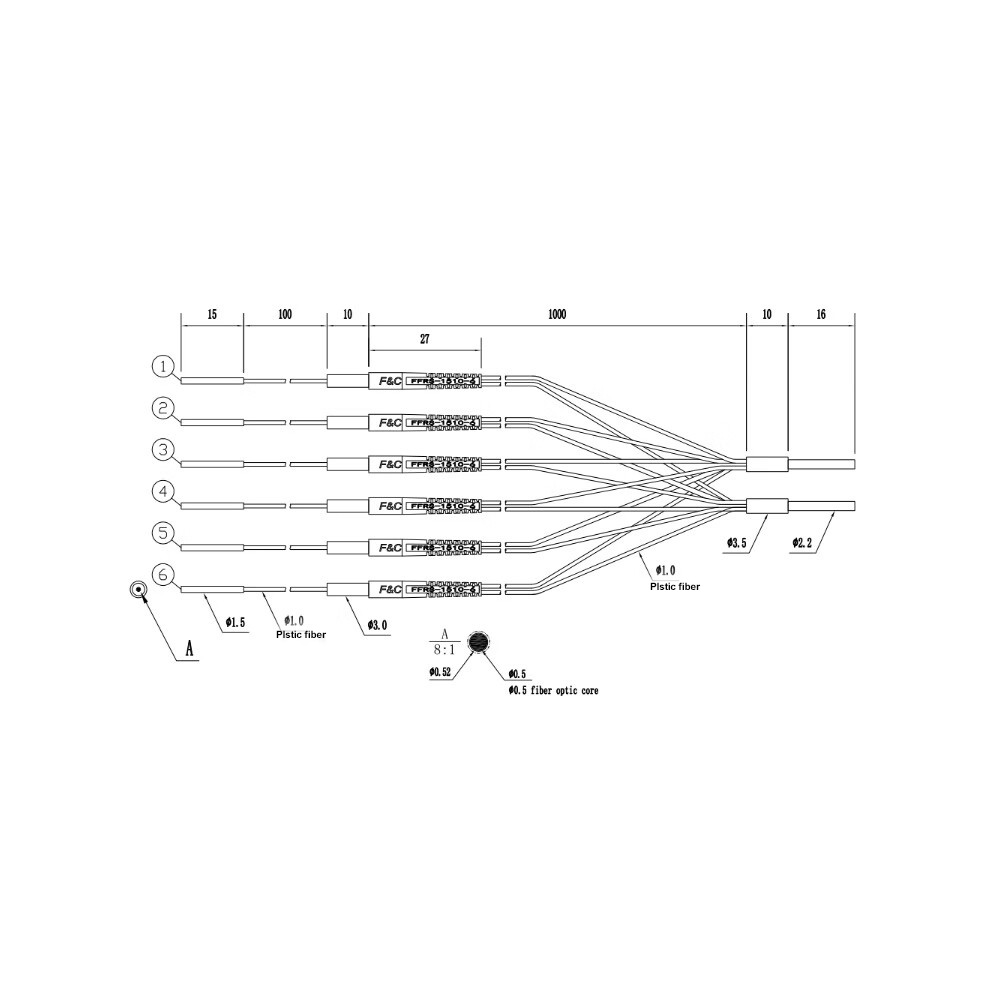

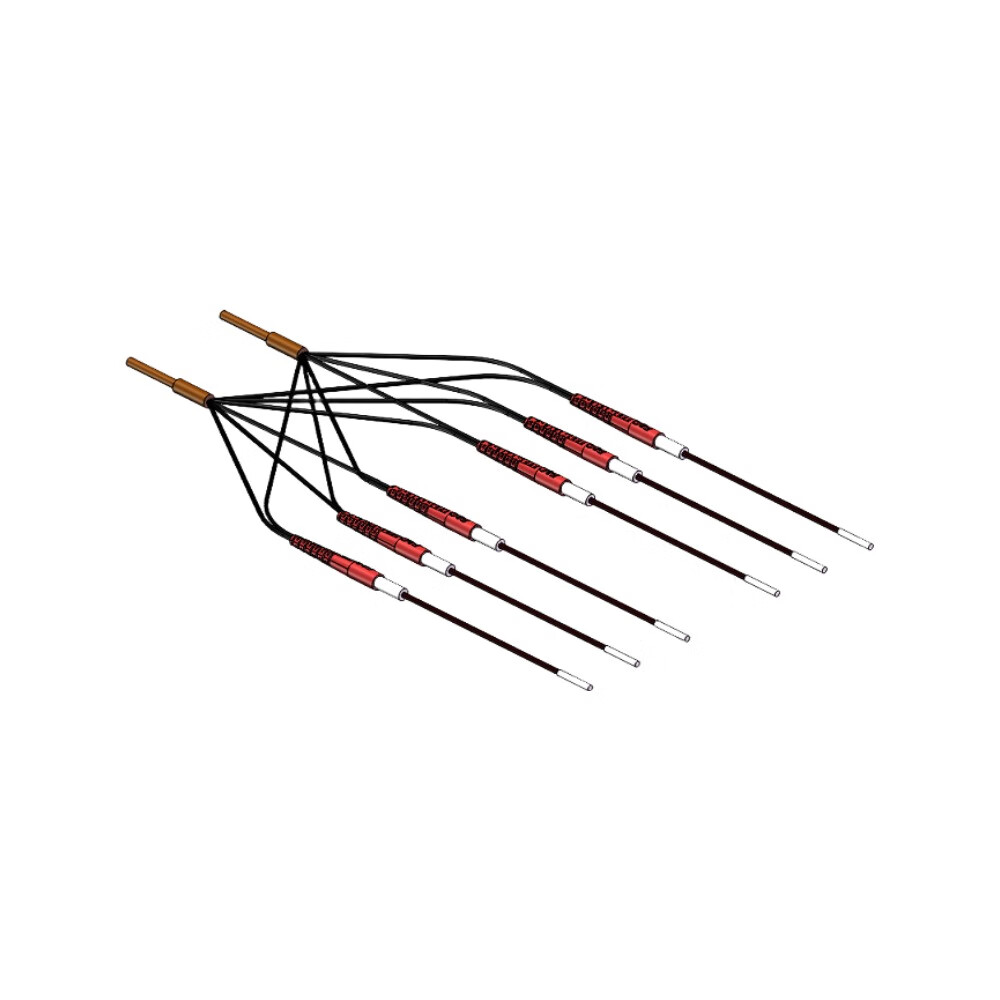

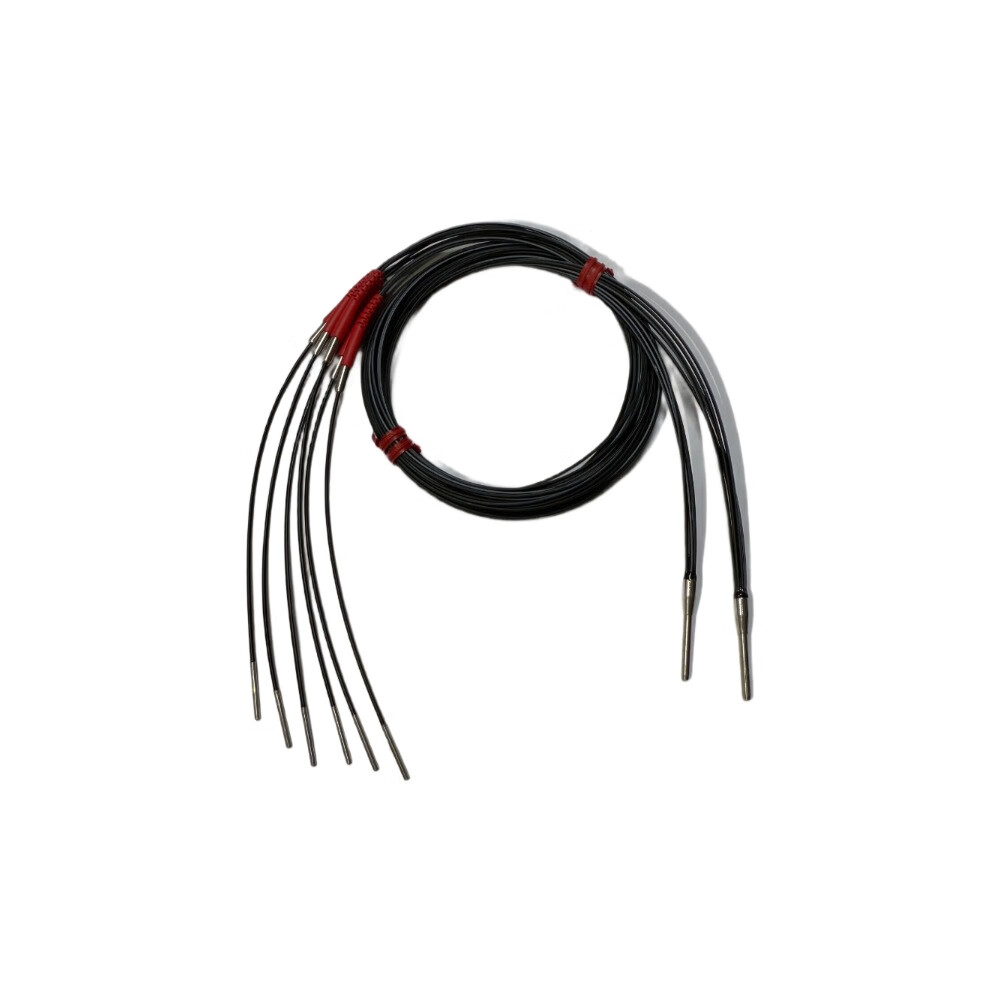

FFRS-1510-6
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Number of fiber heads | 6 |
Fiber head diameter | Φ1.5 |
Fiber cable outer/core | Φ1.0 / Φ0.5*2 |
Cable length | 1M |
Bending radius | R10 |
Conduit tube | Not required |
Red sleeve | Yes |
Sensing distance | 50MM (LONG: 60MM) |
Fiber type | Multi-head, diffuse reflective |
Head material | Stainless steel |
Light exit | Front exit |
Tail connector | Stainless steel |
Cuttable | No |
Weight | 15.73g |
Temp. range | -20°C ~ +70°C |
