| Parameter | Value |
|---|---|
| Number of fiber heads | 4 |
| Fiber head diameter | Φ1 |
| Fiber cable outer/inner | Φ0.9 / Φ0.25*2 |
| Cable length | 1M |
| Bending radius | R5 |
| Conduit tube | Not required |
| Sensing distance | 15MM (LONG: 17MM) |
| Fiber type | Multi-head, diffuse reflective |
| Head material | Stainless steel |
| Light exit | Front exit |
| Tail connector | Copper |
| Cuttable | No |
| Weight | 8.4g |
| Temp. range | -20°C ~ +70°C |

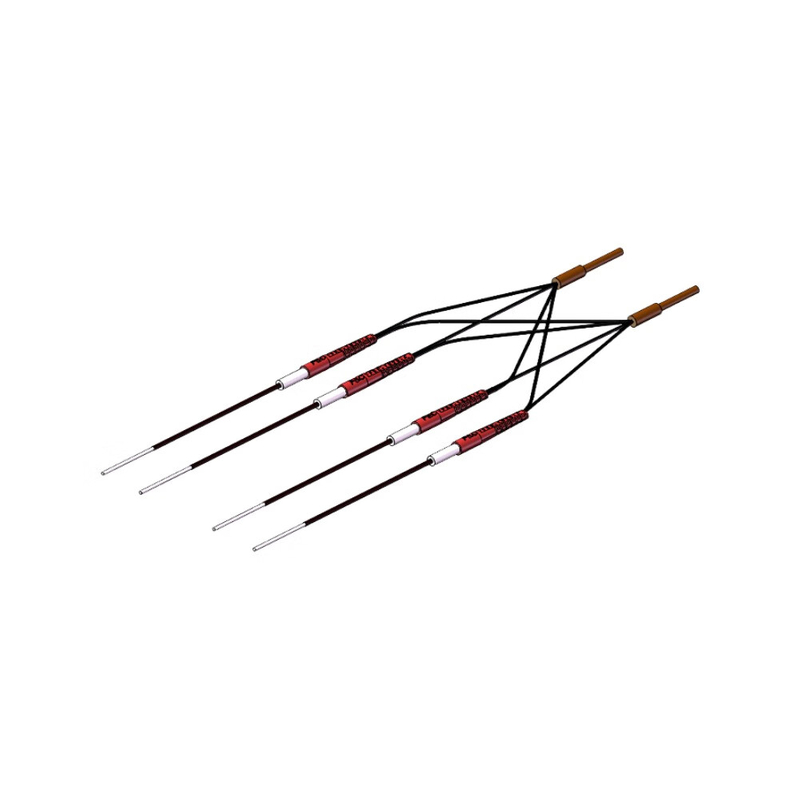

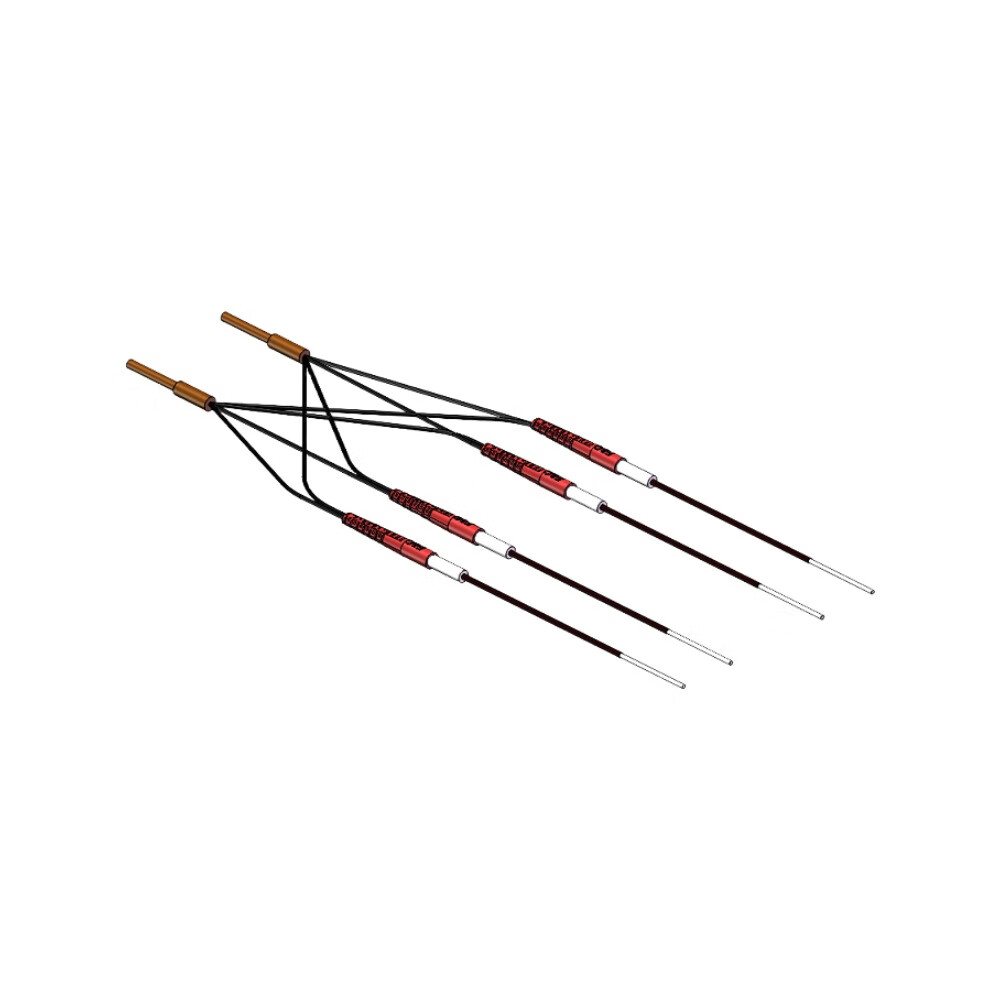

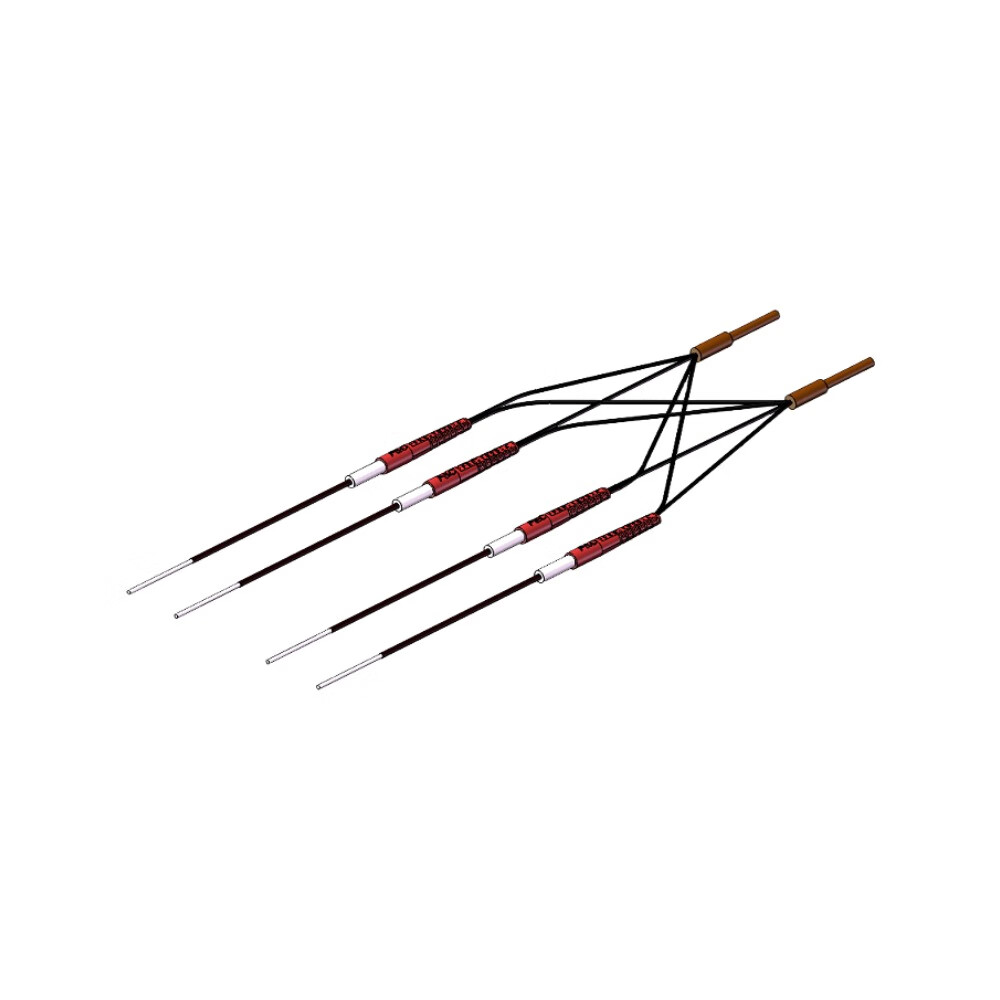

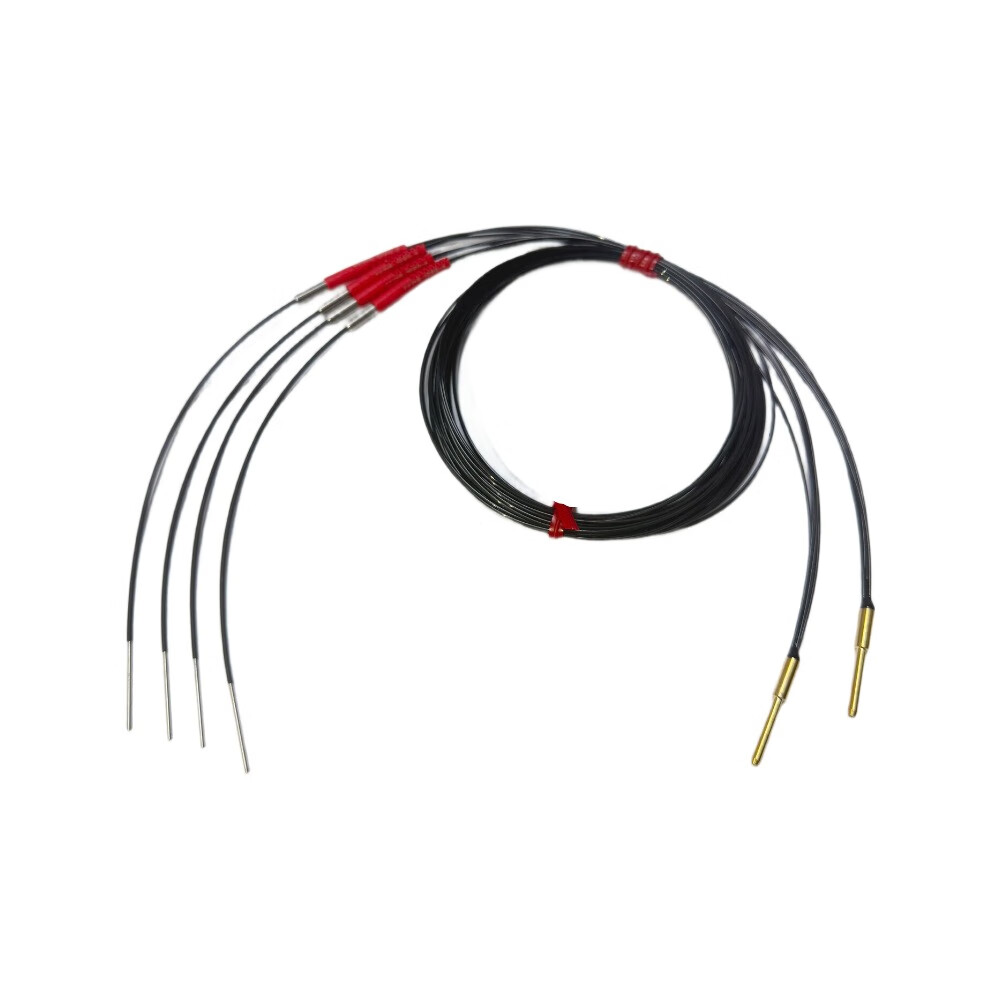

FFRE-1020-4
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Number of fiber heads | 4 |
Fiber head diameter | Φ1 |
Fiber cable outer/inner | Φ0.9 / Φ0.25*2 |
Cable length | 1M |
Bending radius | R5 |
Conduit tube | Not required |
Sensing distance | 15MM (LONG: 17MM) |
Fiber type | Multi-head, diffuse reflective |
Head material | Stainless steel |
Light exit | Front exit |
Tail connector | Copper |
Cuttable | No |
Weight | 8.4g |
Temp. range | -20°C ~ +70°C |
