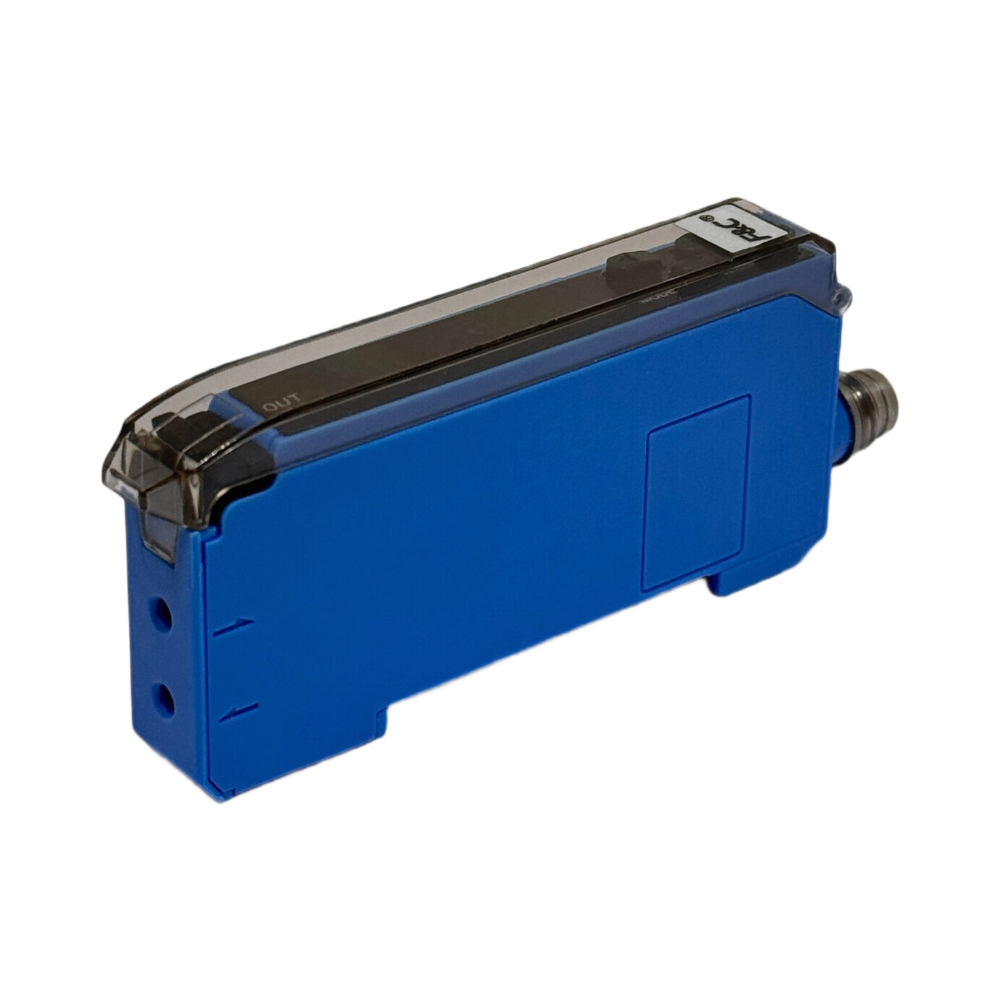

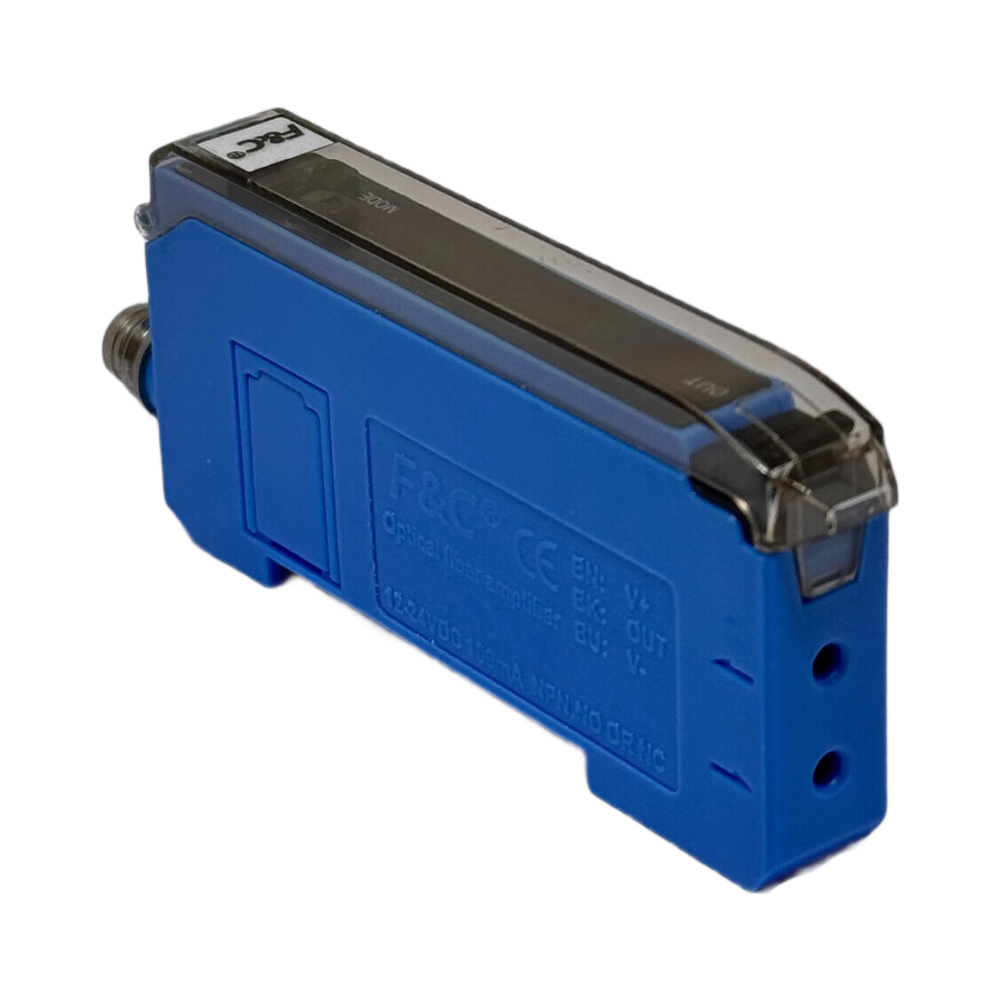

FF-403B/D G02M General-purpose blue light digital display amplifier

Detection method

Depends on fiber used

Detection distance

Depends on fiber used

Light source

470nm Blue modulated light

Operating voltage

12~24VDC ±10%

Residual voltage

<1.5VDC

Current consumption

<30mA

Load current

100mA

Leakage current

<0.01mA (no load)

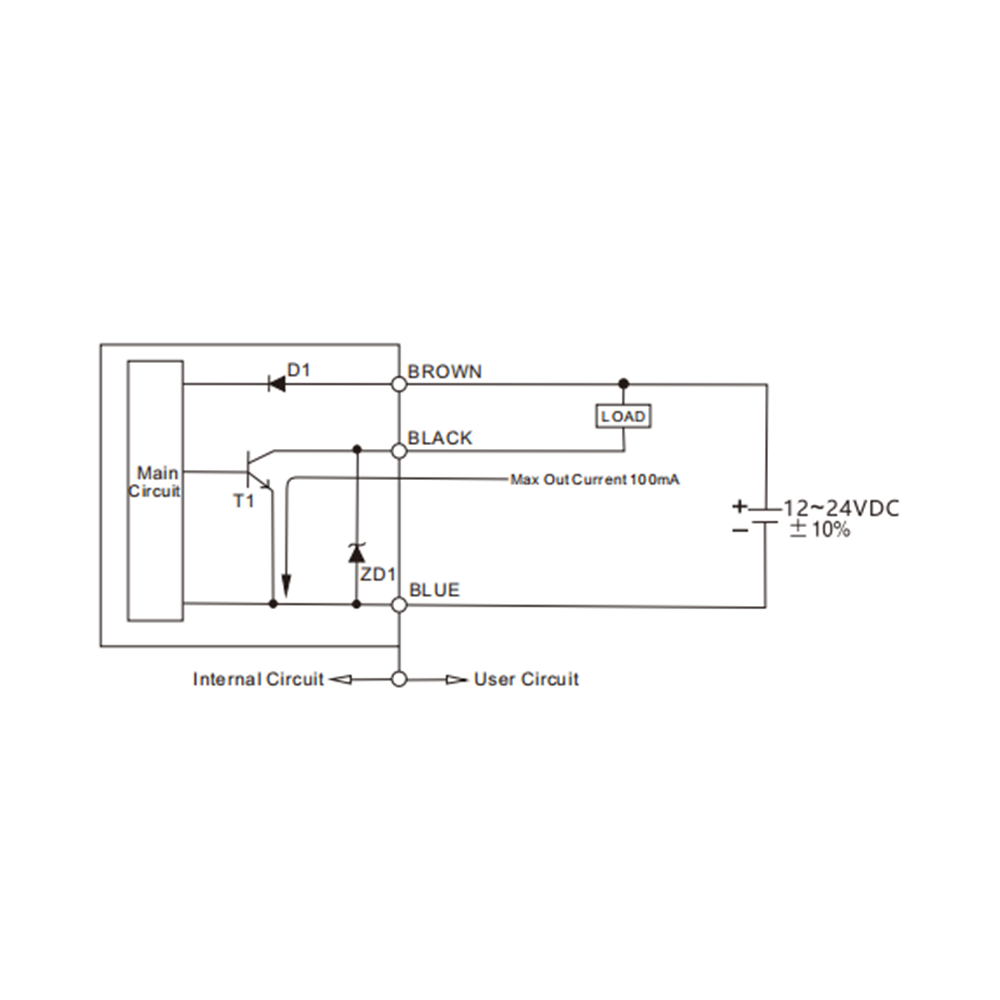

Output mode

NPN (N.O./N.C. adjustable)

Output short-circuit protection

Yes (thermal protection)

Reverse polarity protection

Yes

Surge withstand level

National Standard Level 2

Response time

50s / 1ms / 12ms selectable

Ambient temperature

-10~50°C (no freezing/ice)

Storage temperature

-20~60°C (no freezing/ice)

Ambient humidity

35~85% RH (non-condensing)

Ambient illuminance

Incandescent: ≤2000LX; Sunlight: ≤5000LX

Vibration resistance

10~55Hz, 1min cycle, 1.5mm amplitude, 2hrs each X/Y/Z

Dielectric strength

1000VDC 50/60Hz 1min (charging parts to housing)

Insulation resistance

≥50MΩ (charging parts to housing)

Connection method

M8 3-pin connector

Cable specification

4.0mm 3-core 2M female cable

Weight

~80g

Digital display

4-digit green (set) + 4-digit red (detected) LED

Indicator

Red output LED

Protection rating

IP54

Mounting

M4 screw fastening

Housing material

PC + POM

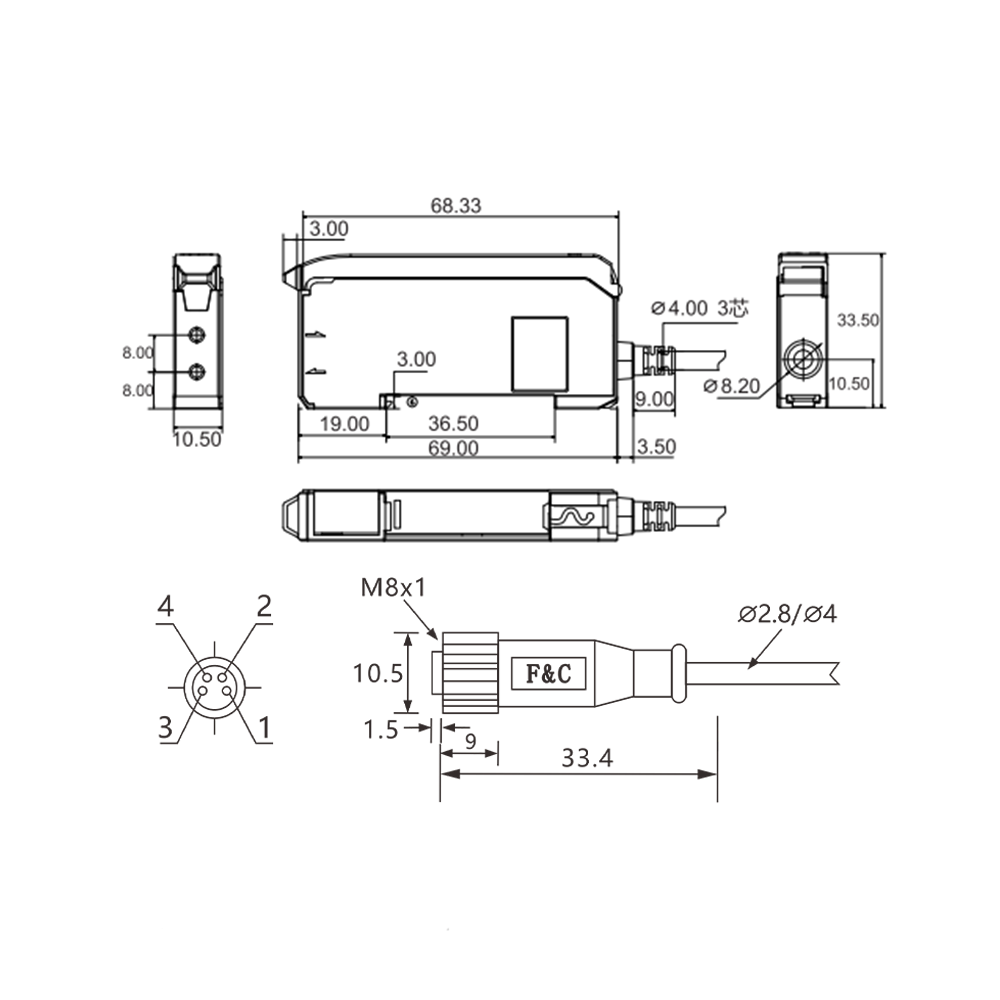

External dimensions

69 × 33.5 × 10.5 mm

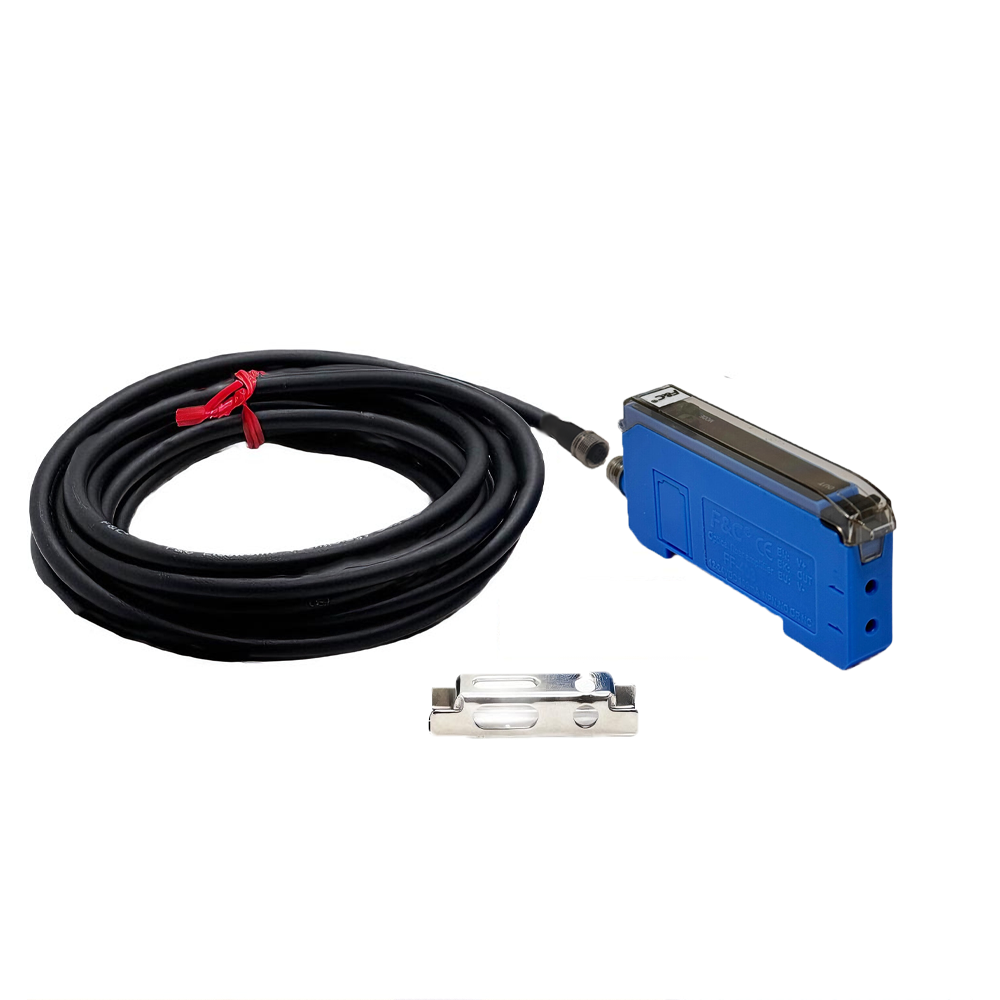

Accessories

Amplifier, mounting bracket ×1

Certification

CE
