| Parameter | Value |
|---|---|
| Light source | 630nm Red modulated light |
| Output mode | NPN (N.O./N.C. adjustable) |
| Connection | M8 3-pin connector with 2M female cable (4.0mm, 3-core) |
| Weight | ~65g |
| Display | 4-digit green + red LED |
| Protection rating | IP54 |
| Dimensions | 69 × 33.5 × 10.5 mm |
| Certification | CE |
FF-403/D G02M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Detection method | Depends on fiber used |
Detection distance | Depends on fiber used |
Light source | 630nm Red modulated light |
Operating voltage | 12~24VDC ±10% |
Residual voltage | <2VDC |
Current consumption | <30mA |
Load current | 100mA |
Leakage current | <0.01mA (no load) |

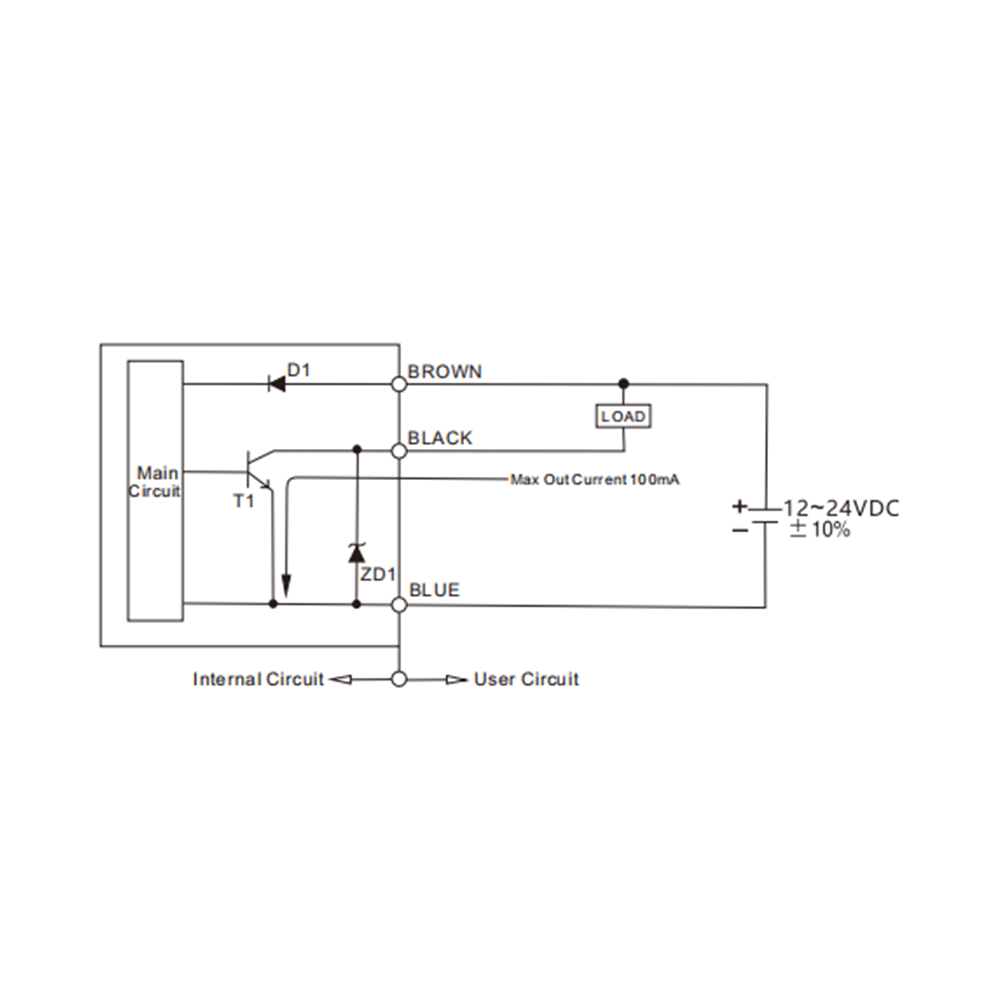

Output mode | NPN (N.O./N.C. adjustable) |
Output short-circuit protection | Yes (thermal protection) |
Reverse polarity protection | Yes |
Surge withstand level | NA |
Response time | 50s / 1ms / 7ms selectable |
Ambient temperature | -10~50°C (no freezing/ice) |
Storage temperature | -20~60°C (no freezing/ice) |
Ambient humidity | 35~85% RH (non-condensing) |
Ambient illuminance | Incandescent: ≤2000LX; Sunlight: ≤5000LX |
Vibration resistance | 10~55Hz, 1min cycle, 1.5mm amplitude, 2hrs each X/Y/Z |
Dielectric strength | 1000VDC 50/60Hz 1min (charging parts to housing) |
Insulation resistance | ≥50MΩ (charging parts to housing) |
Connection method | M8 3-pin connector |
Cable specification | 4.0mm 3-core 2M female connector cable |
Weight | ~65g |
Digital display | 4-digit green (set) + 4-digit red (detected) LED |
Indicator | Red output LED |
Protection rating | IP54 |
Mounting | M4 screw fastening |
Housing material | PC + POM |

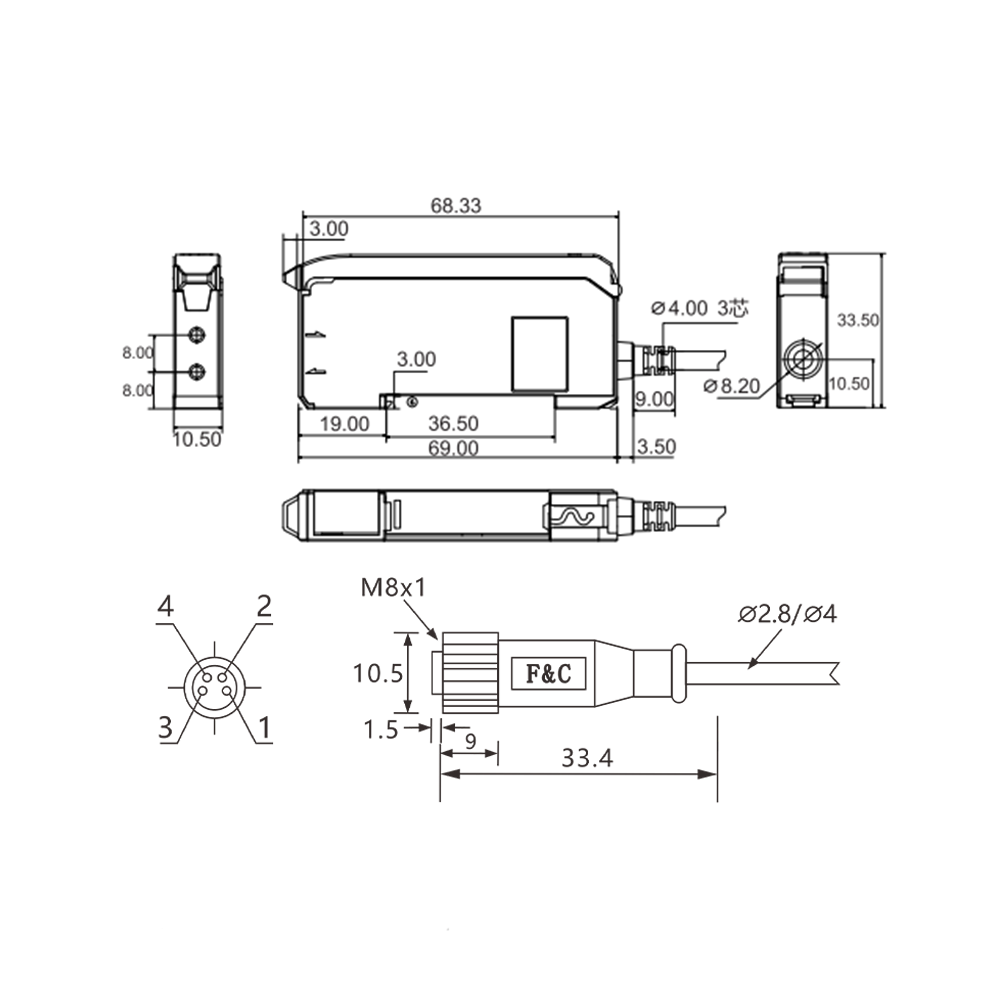

External dimensions | 69 × 33.5 × 10.5 mm |

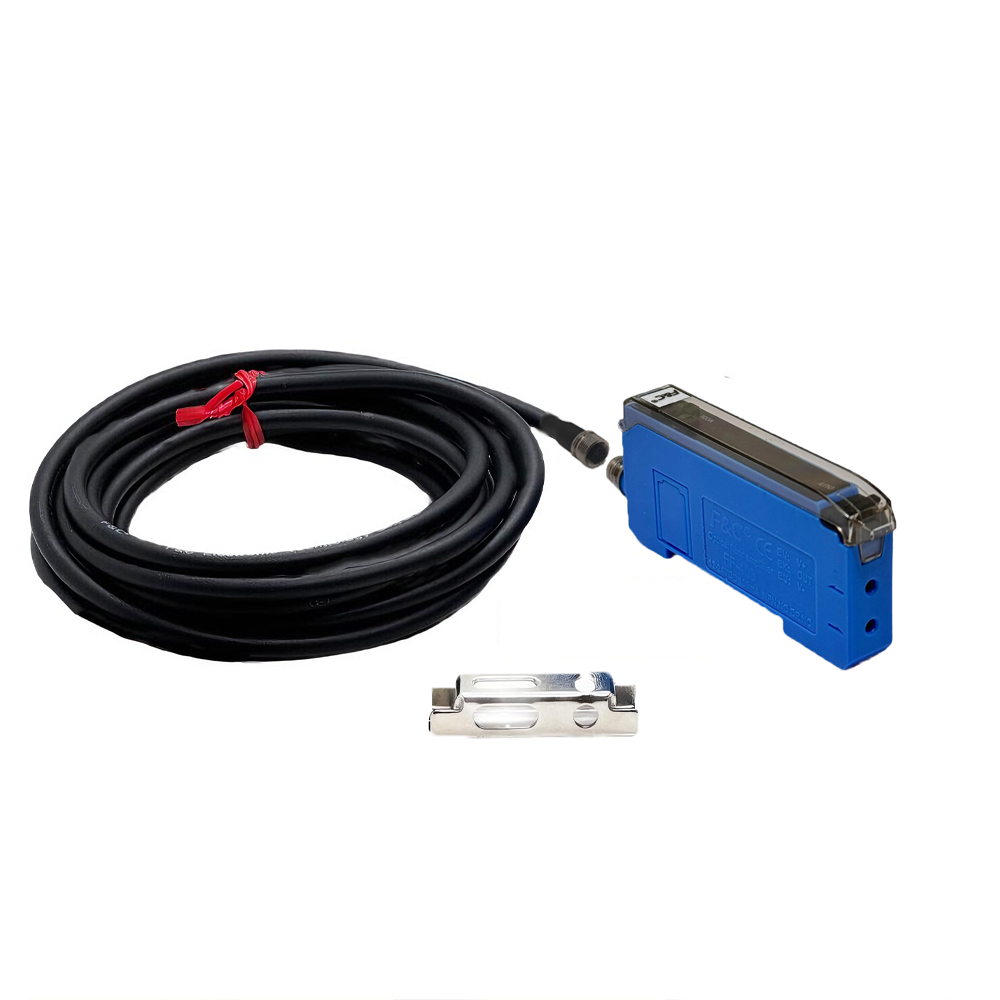

Accessories | Amplifier, mounting bracket ×1 |
Certification | CE |
