| Parameter | Value |
|---|---|
| Detection method | Depends on fiber used |
| Detection distance | Depends on fiber used |
| Light source | 630nm Red modulated light |
| Operating voltage | 12~24VDC ±10% |
| Residual voltage | <1.5VDC |
| Current consumption | <30mA |
| Load current | 100mA |
| Leakage current | <0.01mA (no load) |

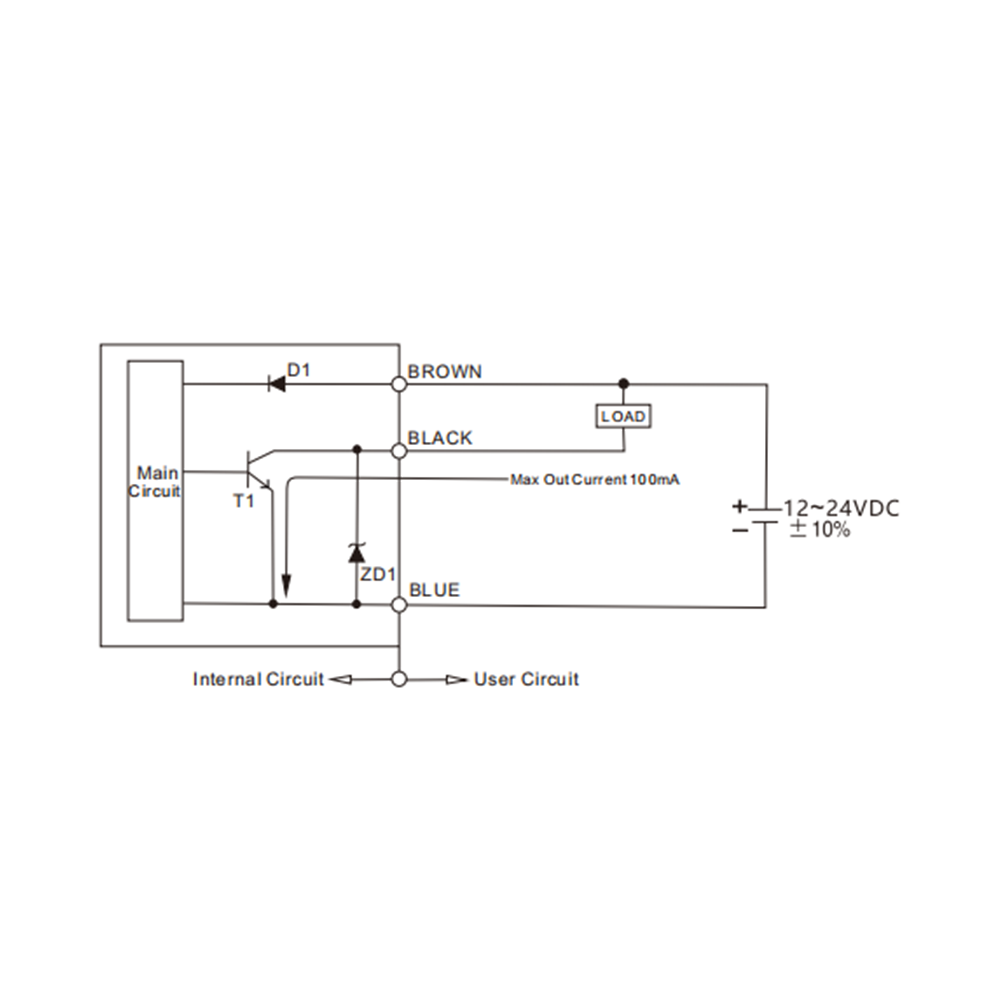

| Output mode | NPN (N.O./N.C. adjustable) |
| Output short-circuit protection | Yes (thermal protection) |
| Reverse polarity protection | Yes |
| Surge withstand level | National Standard Level 2 |
| Response time | 50s / 1ms / 2ms selectable |
| Frequency adjustment | Manual |
| Ambient temperature | -10~50°C (no freezing/ice) |
| Storage temperature | -20~60°C (no freezing/ice) |
| Ambient humidity | 35~85% RH (non-condensing) |
| Ambient illuminance | Incandescent: ≤2000LX; Sunlight: ≤5000LX |
| Vibration resistance | 10~55Hz, 1min cycle, 1.5mm amplitude, 2hrs each X/Y/Z |
| Dielectric strength | 1000VDC 50/60Hz 1min (charging parts to housing) |
| Insulation resistance | ≥50MΩ (charging parts to housing) |
| Connection method | Pre-wired cable |
| Cable specification | 4.0mm 3-core 2M flexible cable |
| Weight | Approx. 65g |
| Digital display | 4-digit green + 4-digit red LED (green: set value, red: detected value) |
| Indicator | Red output LED |
| Protection rating | IP54 |
| Mounting | M4 screw fastening |
| Housing material | PC + POM |

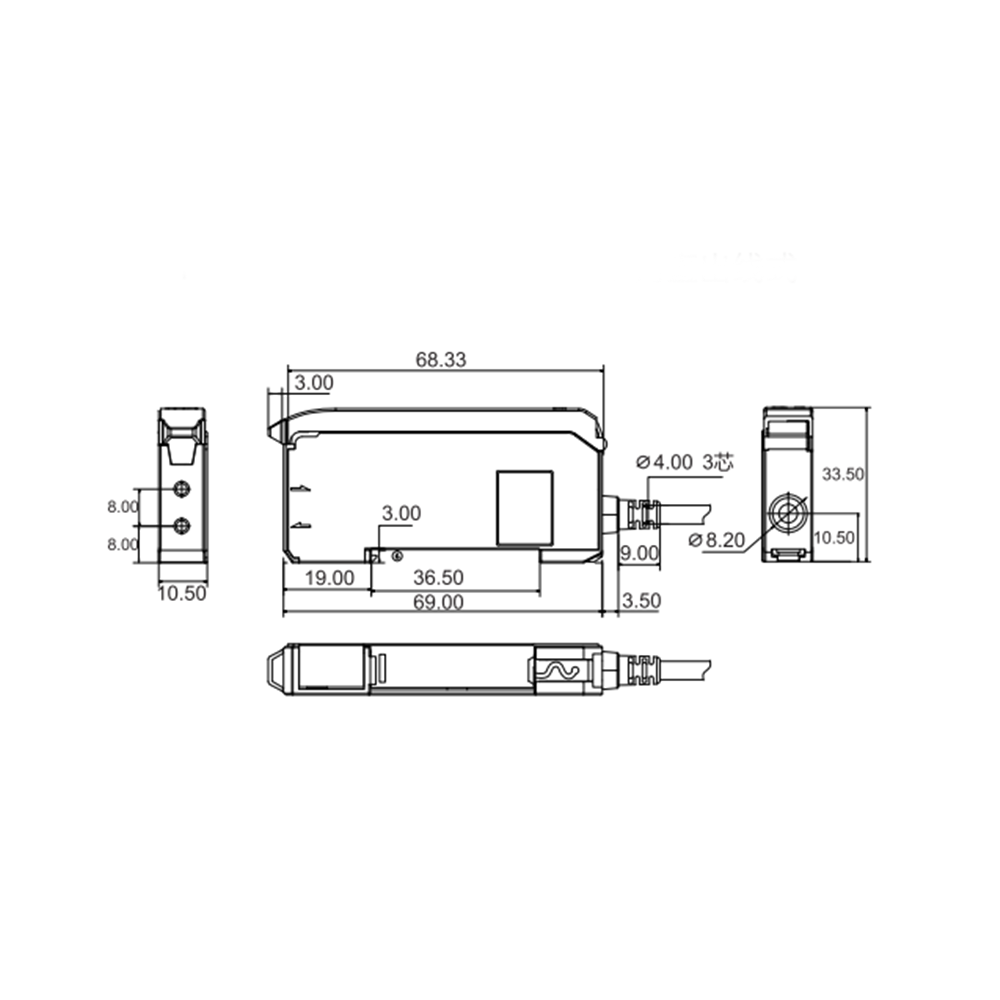

| External dimensions | 69 × 33.5 × 10.5 mm |

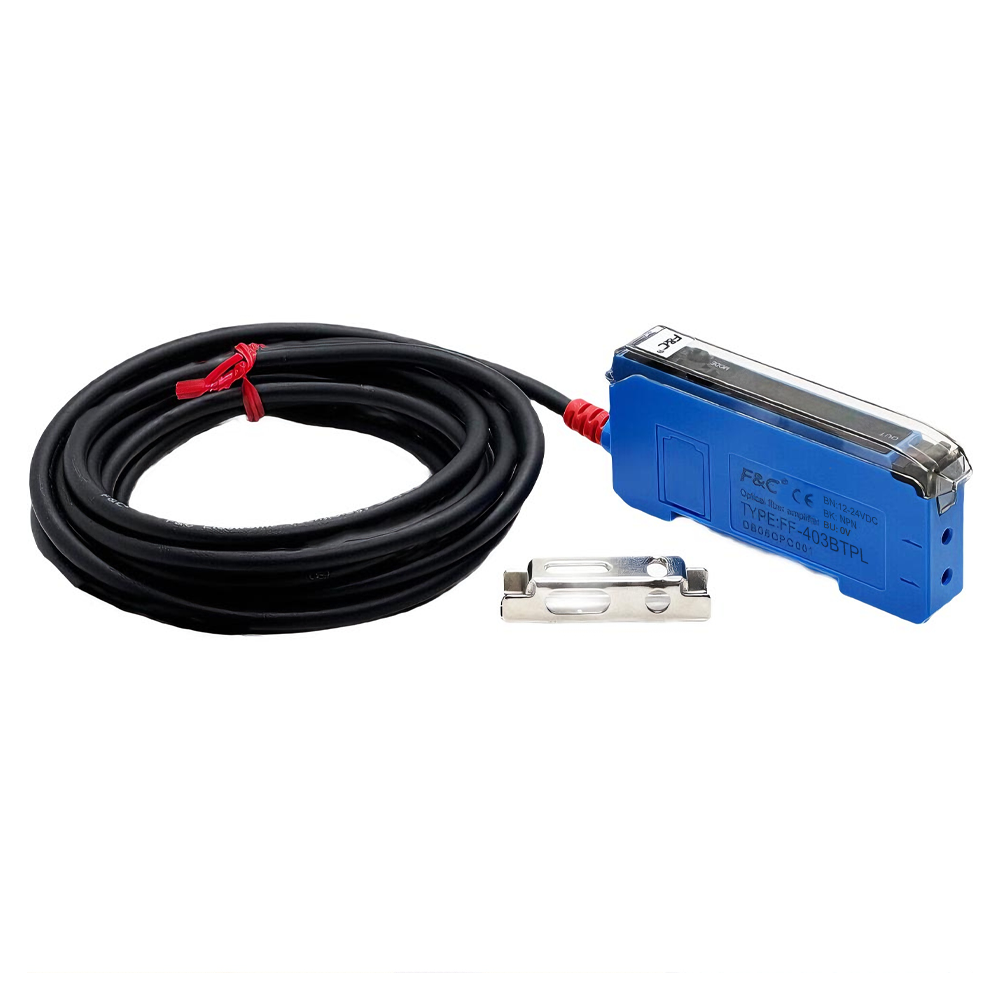

| Accessories | Amplifier, mounting bracket ×1 |
| Certification | CE |

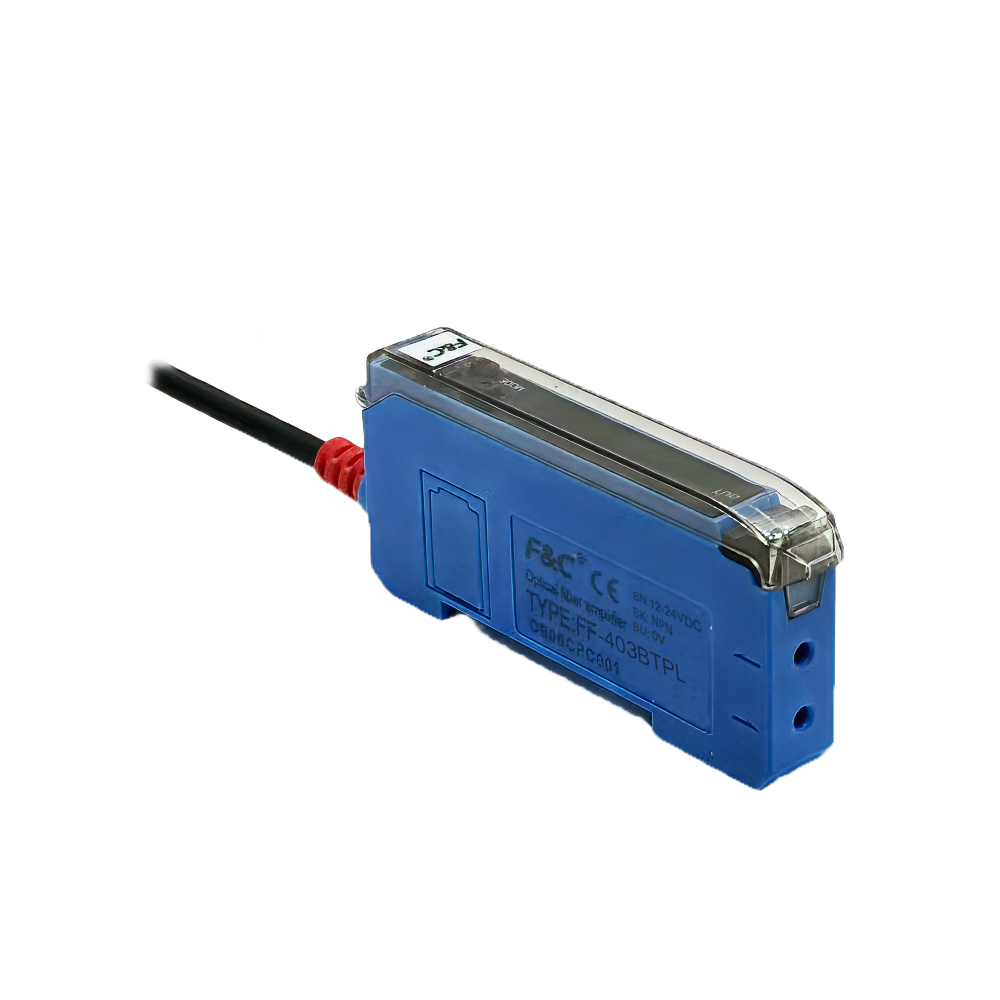

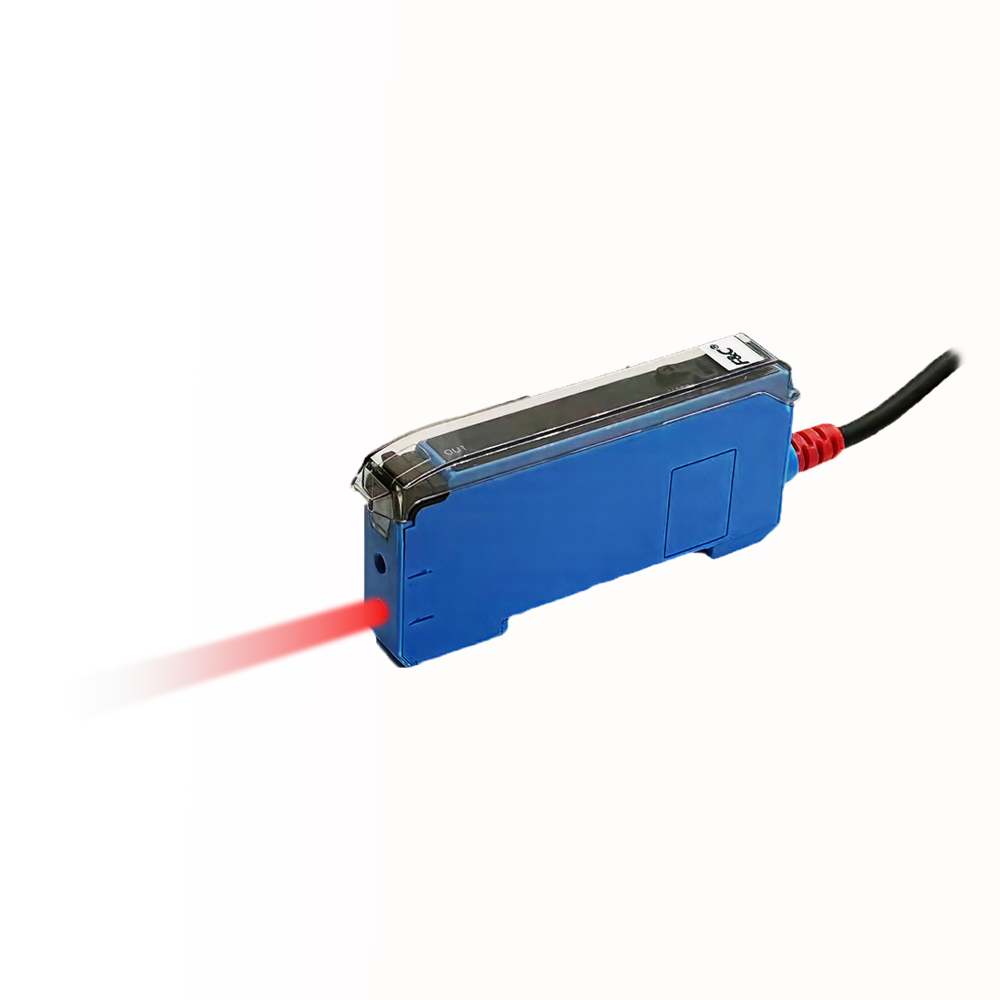

FF-403 BTPL
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Detection method | Depends on fiber used |
Detection distance | Depends on fiber used |
Light source | 630nm Red modulated light |
Operating voltage | 12~24VDC ±10% |
Residual voltage | <1.5VDC |
Current consumption | <30mA |
Load current | 100mA |
Leakage current | <0.01mA (no load) |
Output mode | NPN (N.O./N.C. adjustable) |
Output short-circuit protection | Yes (thermal protection) |
Reverse polarity protection | Yes |
Surge withstand level | National Standard Level 2 |
Response time | 50s / 1ms / 2ms selectable |
Frequency adjustment | Manual |
Ambient temperature | -10~50°C (no freezing/ice) |
Storage temperature | -20~60°C (no freezing/ice) |
Ambient humidity | 35~85% RH (non-condensing) |
Ambient illuminance | Incandescent: ≤2000LX; Sunlight: ≤5000LX |
Vibration resistance | 10~55Hz, 1min cycle, 1.5mm amplitude, 2hrs each X/Y/Z |
Dielectric strength | 1000VDC 50/60Hz 1min (charging parts to housing) |
Insulation resistance | ≥50MΩ (charging parts to housing) |
Connection method | Pre-wired cable |
Cable specification | 4.0mm 3-core 2M flexible cable |
Weight | Approx. 65g |
Digital display | 4-digit green + 4-digit red LED (green: set value, red: detected value) |
Indicator | Red output LED |
Protection rating | IP54 |
Mounting | M4 screw fastening |
Housing material | PC + POM |
External dimensions | 69 × 33.5 × 10.5 mm |
Accessories | Amplifier, mounting bracket ×1 |
Certification | CE |
