FF-401RGB/D G02M Color mark amplifier

Comprehensive Overview of the FF-401RGB/D G02M Color Mark Amplifier

The FF-401RGB/D G02M Color Mark Amplifier is engineered to resolve the most demanding color differentiation challenges in modern manufacturing. Designed specifically for the packaging and printing industries, this sensor module excels in high-precision color mark positioning amidst complex operational conditions. When automated production lines run at maximum capacity, the ability to instantly identify subtle registration marks determines the accuracy of cutting, folding, and sealing processes. By integrating this advanced amplifier into your machinery, facility managers can effectively eliminate registration errors, drastically reduce material waste, and maintain continuous, uninterrupted throughput across demanding production cycles.

Precision Color Mark Detection for Complex Industrial Environments

At the core of this amplifier's performance is its highly calibrated RGB light source, which meticulously combines 630nm Red, 530nm Green, and 470nm Blue wavelengths. This tri-color illumination capability allows the sensor to detect even the most minute color contrasts on highly reflective, matte, or uneven surfaces. Whether identifying a faint registration mark on a glossy polymer film or distinguishing between closely matched hues on recycled cardboard, the sensor delivers unparalleled accuracy.

Coupled with a microsecond-level high-speed response technology, it guarantees accurate target recognition and precise grabbing over extended distances. Users can select from multiple response times—50us, 300us, 1ms, or 2ms—to perfectly match the speed of their specific application. This ensures that every printed label or packaging film is processed with exacting accuracy, preventing the costly misalignments that often plague high-speed sorting and web-guiding operations. The physical housing feels exceptionally sturdy, providing a reassuring sense of durability when mounted onto vibrating conveyor systems.

Intuitive Operation and Immediate Visual Feedback

On the factory floor, minimizing equipment downtime is paramount. This color mark amplifier is equipped with a highly visible, dual-color interface featuring a brilliant 4-digit green and 4-digit red LED display. The crisp, bright glow of the digital readout cuts through dimly lit factory floors, allowing operators to monitor real-time detection values alongside pre-set thresholds at a single glance.

This clear numerical feedback eliminates the guesswork traditionally associated with sensor calibration. During shift changes or product changeovers, on-site technicians can swiftly adjust parameters without navigating convoluted menus. The intuitive visual feedback mechanism substantially lowers the installation and debugging difficulty, allowing your maintenance team to bring production lines back up to speed in a fraction of the usual time. Furthermore, the tactile push-buttons on the amplifier body provide a firm, responsive click, ensuring accurate input even when operators are wearing thick protective gloves during maintenance routines.

Streamlined System Integration and Adaptability

Compatibility with existing control architectures is a critical factor for automation engineers and procurement teams. The FF-401RGB/D G02M offers exceptional adaptability to integrate smoothly into diverse electrical setups.

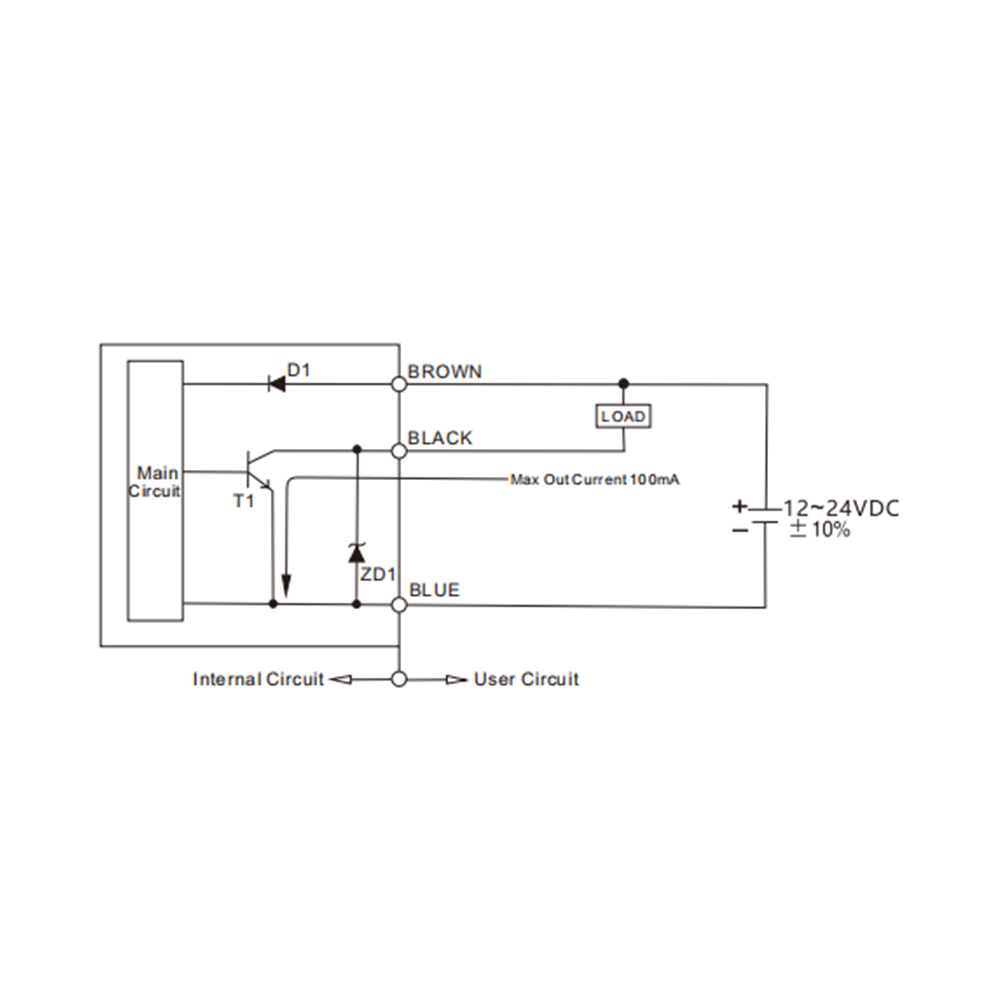

• Flexible Output Configuration: Featuring an NPN output mode that is fully adjustable between Normally Open (N.O.) and Normally Closed (N.C.) configurations, it connects effortlessly with various programmable logic controllers (PLCs).
• Advanced Timing Controls: To accommodate varying machine speeds and processing cycles, the device includes multiple timer modes (OFF, ON-D, OF-D, and SHOT) with a highly adjustable range from 1 to 9999ms.

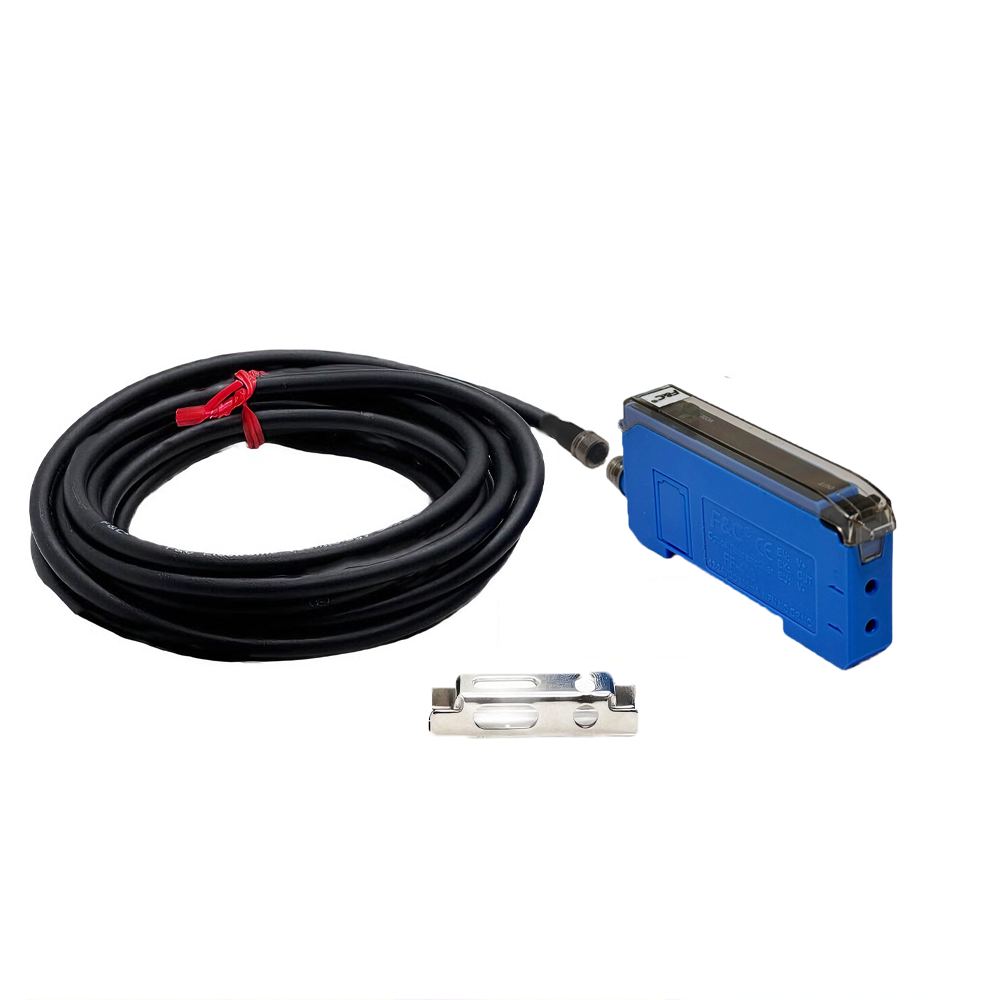

• Standardized Connectivity: Physical integration is simplified via an industry-standard M8 3-pin connector paired with a 2M female cable (4.0mm, 3-core), facilitating secure and stable signal transmission without the need for custom wiring.

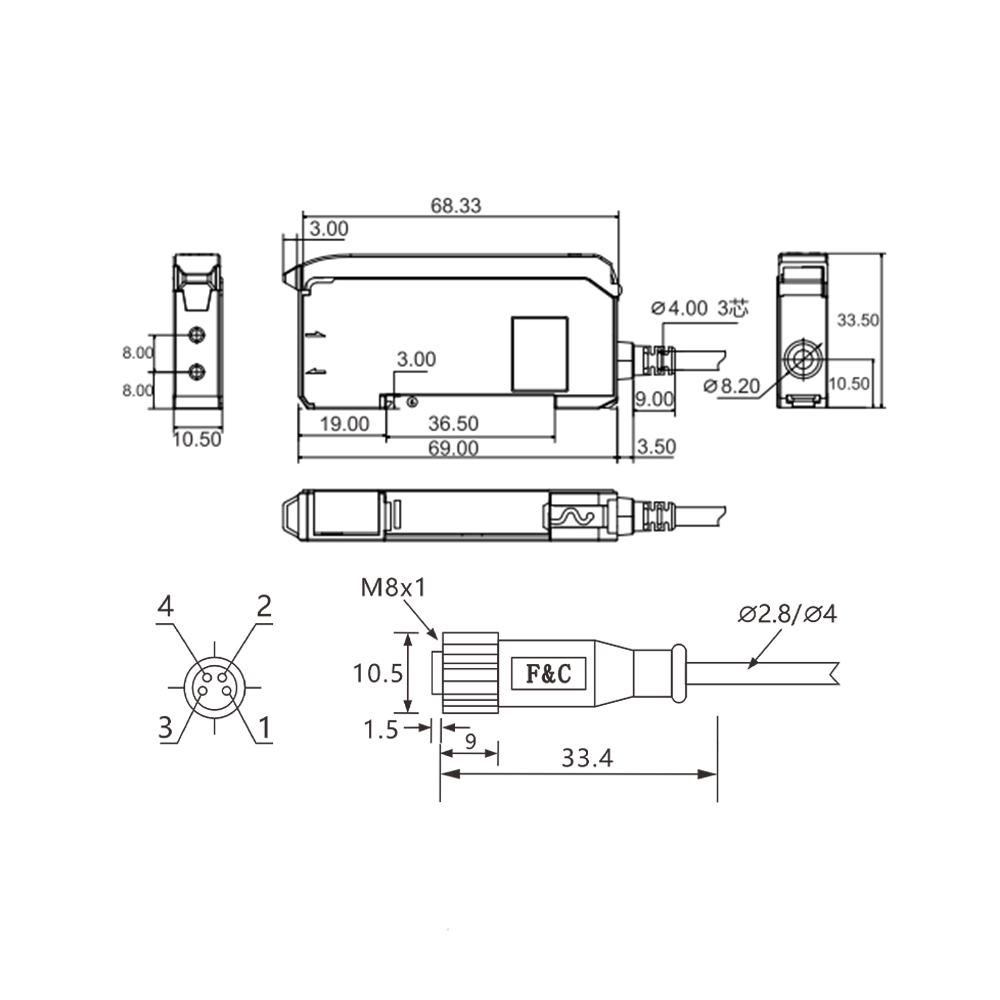

• Compact Form Factor: Weighing approximately 80g and measuring just 69 × 33.5 × 10.5 mm, the amplifier slides effortlessly into confined mounting brackets within dense machinery layouts.

Robust Reliability and Dedicated Purchasing Support

Industrial environments are inherently unforgiving, exposing sensitive electronics to dust, moisture, and continuous mechanical vibration. Built to withstand these rigors, the amplifier boasts an IP54 protection rating, effectively shielding its internal circuitry from splashing water and particulate ingress. Operating reliably within a broad ambient temperature range of -10 to 50°C, it maintains consistent performance whether installed in a cold storage packaging facility or near heat-generating printing presses. The CE certification serves as a testament to its compliance with stringent international safety and operational standards.

To fully support your procurement cycle and project implementation, comprehensive factory services are available. Purchasing managers can request original factory samples and arrange for on-site testing (demos) to validate the sensor's performance in specific real-world applications. Combined with a commitment to rapid delivery schedules, these support structures safeguard your operational investment and ensure that critical automation upgrades remain strictly on schedule, maximizing overall enterprise efficiency.
