| Parameter | Value | |
|---|---|---|
| Light source | 630nm Red + 530nm Green + 470nm Blue | |
| Operating voltage | 12~24VDC ±10% | |

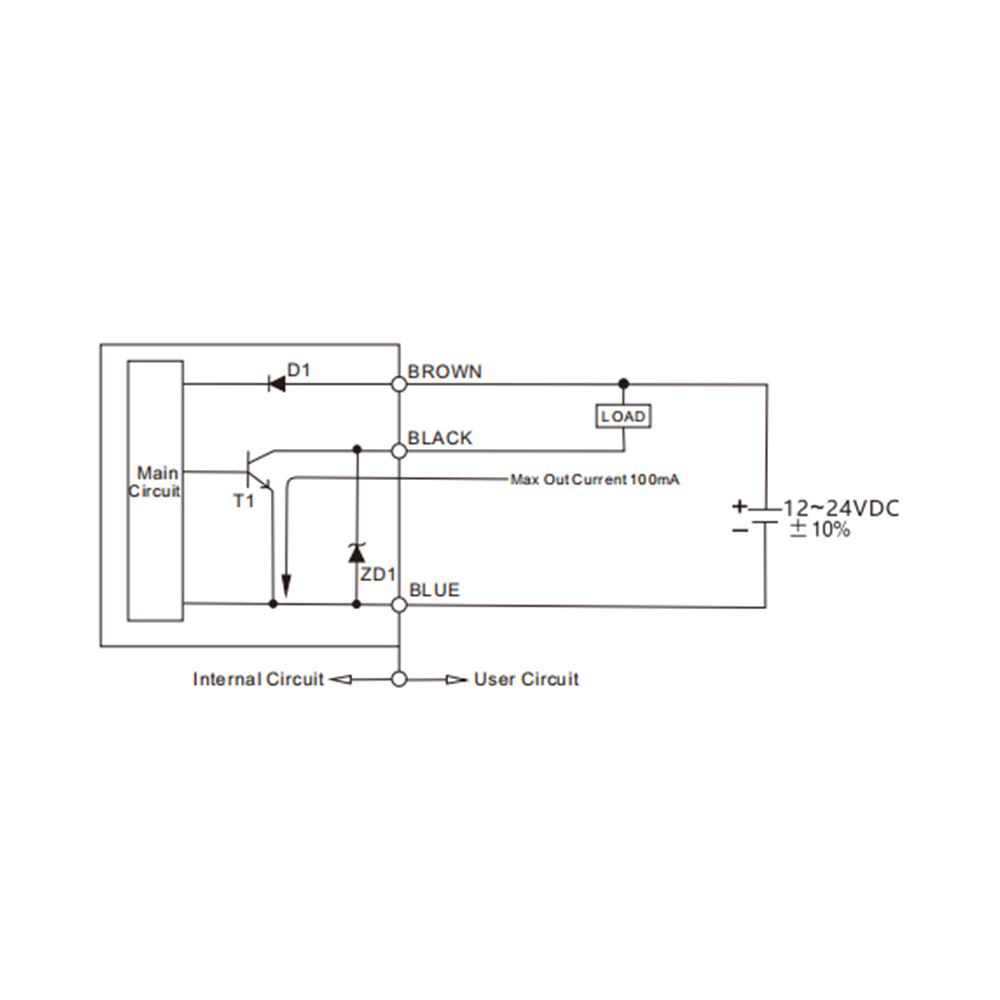

| Output mode | NPN (N.O./N.C. adjustable) | |
| Response time | 50us / 300us / 1ms / 2ms selectable | |
| Timer | OFF / ON-D / OF-D / SHOT, 1~9999ms adjustable | |
| Display | 4-digit green + 4-digit red LED | |
| Ambient temp. | -10~50°C | |
| Protection rating | IP54 | |
| Connection | M8 3-pin connector | |

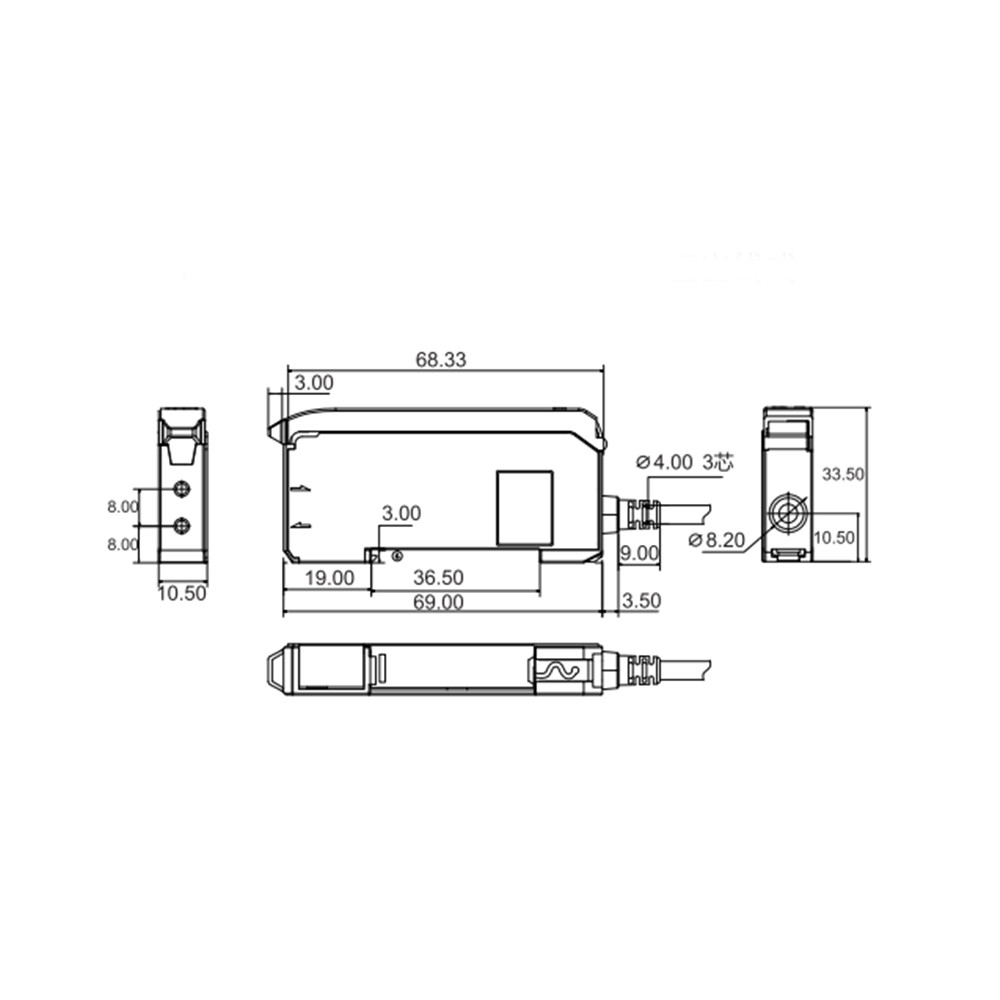

| Dimensions | 69 × 33.5 × 10.5 mm | |
| Weight | ~65g | |
| Certification | CE | |
FF-401RGB/D
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Light source | 630nm Red + 530nm Green + 470nm Blue |
Operating voltage | 12~24VDC ±10% |
Output mode | NPN (N.O./N.C. adjustable) |
Response time | 50us / 300us / 1ms / 2ms selectable |
Timer | OFF / ON-D / OF-D / SHOT, 1~9999ms adjustable |
Display | 4-digit green + 4-digit red LED |
Ambient temp. | -10~50°C |
Protection rating | IP54 |
Connection | M8 3-pin connector |
Dimensions | 69 × 33.5 × 10.5 mm |
Weight | ~65g |
Certification | CE |
