| Parameter | Value |
|---|---|
| Light source | 630nm Red + 530nm Green + 470nm Blue |
| Operating voltage | 12~24VDC ±10% |

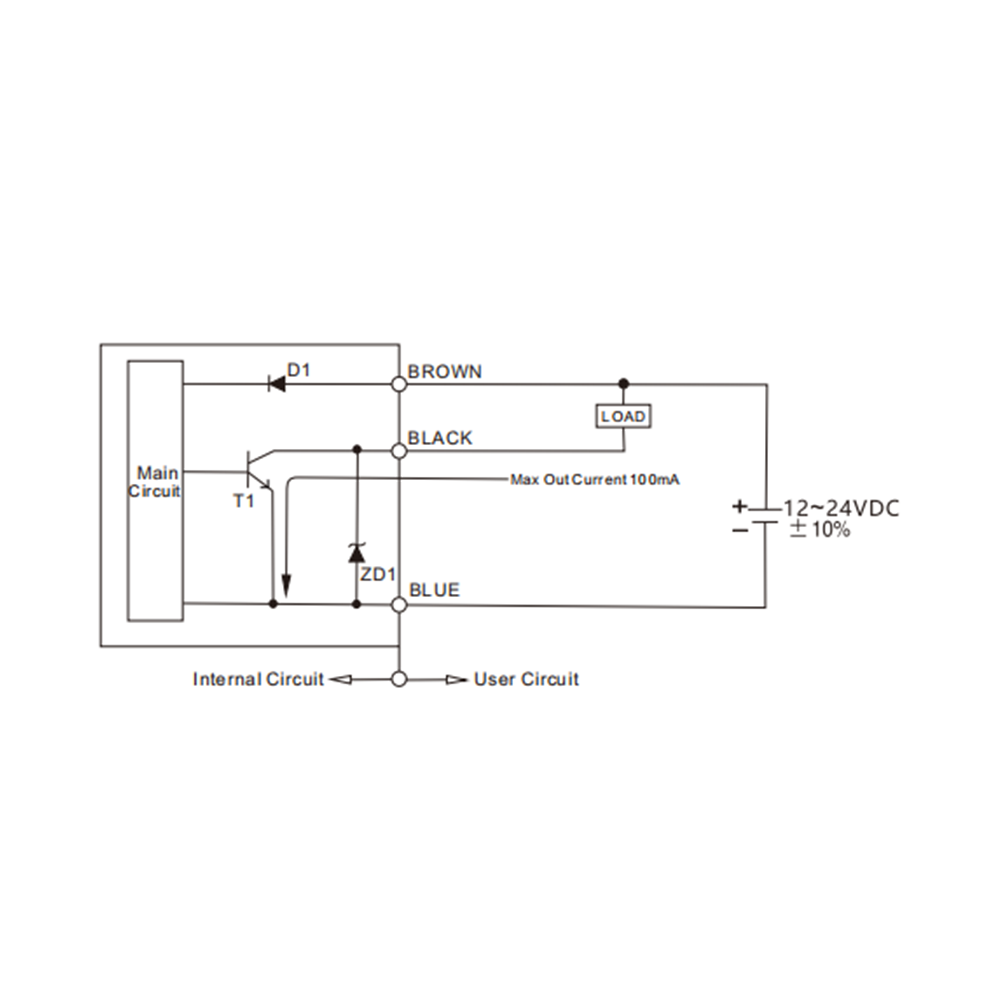

| Output mode | NPN (N.O./N.C. adjustable) |
| Response time | 50us / 300us / 1ms / 2ms selectable |
| Timer | OFF / ON-D / OF-D / SHOT, 1~9999ms adjustable |
| Display | 4-digit green + 4-digit red LED |
| Ambient temp. | -10~50°C |
| Protection rating | IP54 |
| Cable | 2M, 3-core flexible cable |

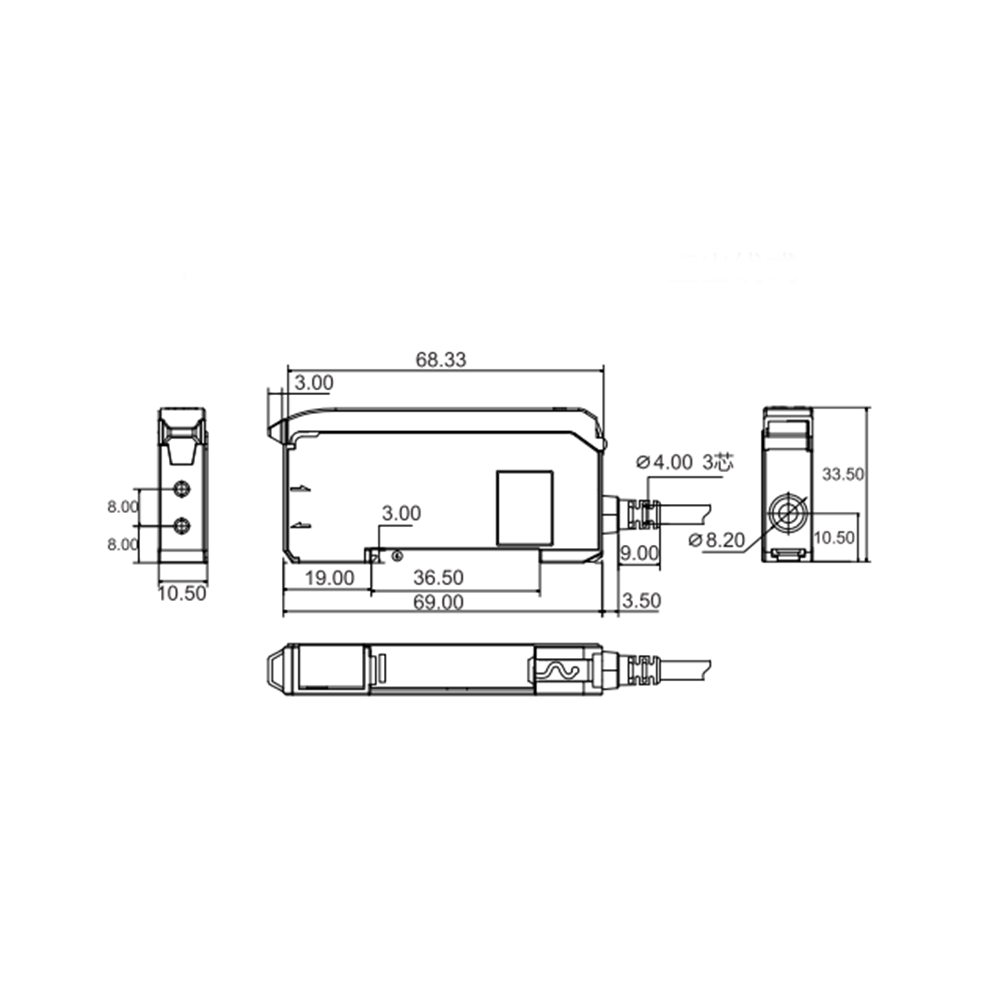

| Dimensions | 69 × 33.5 × 10.5 mm |
| Weight | ~65g |
| Certification | CE |

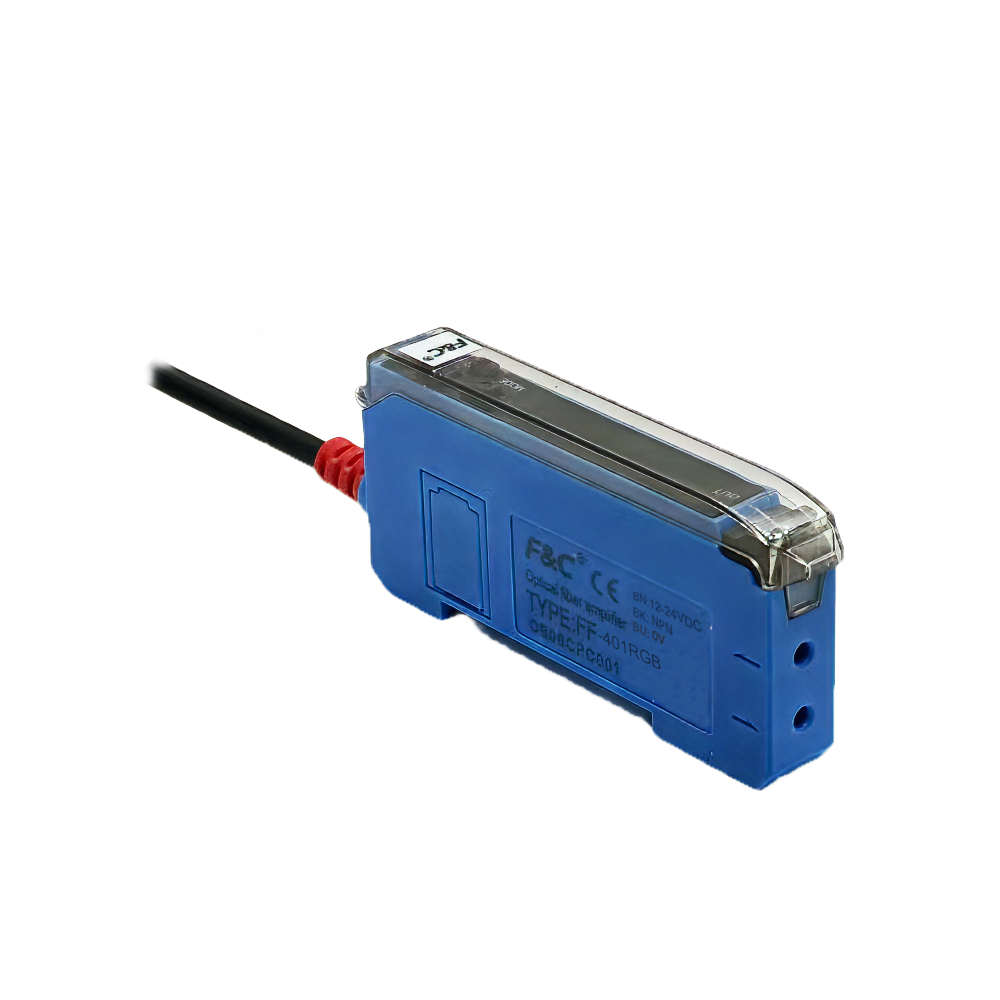

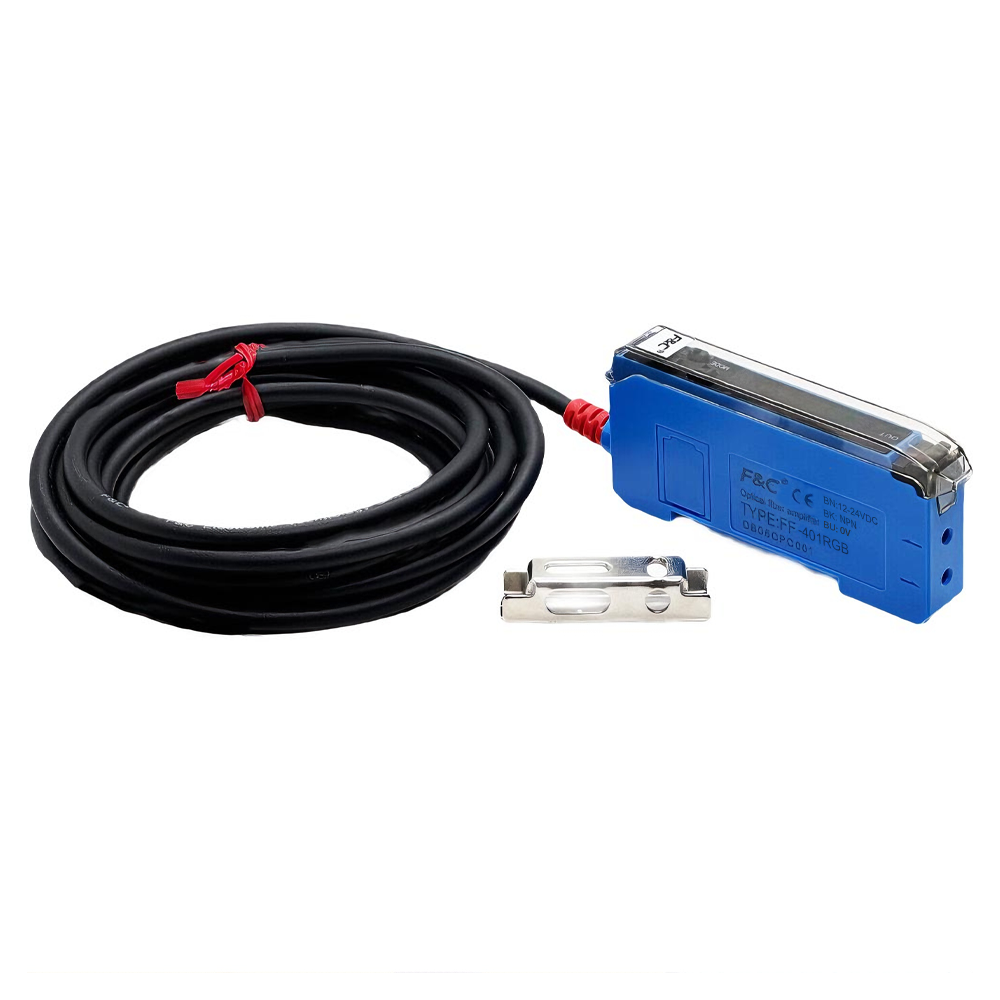

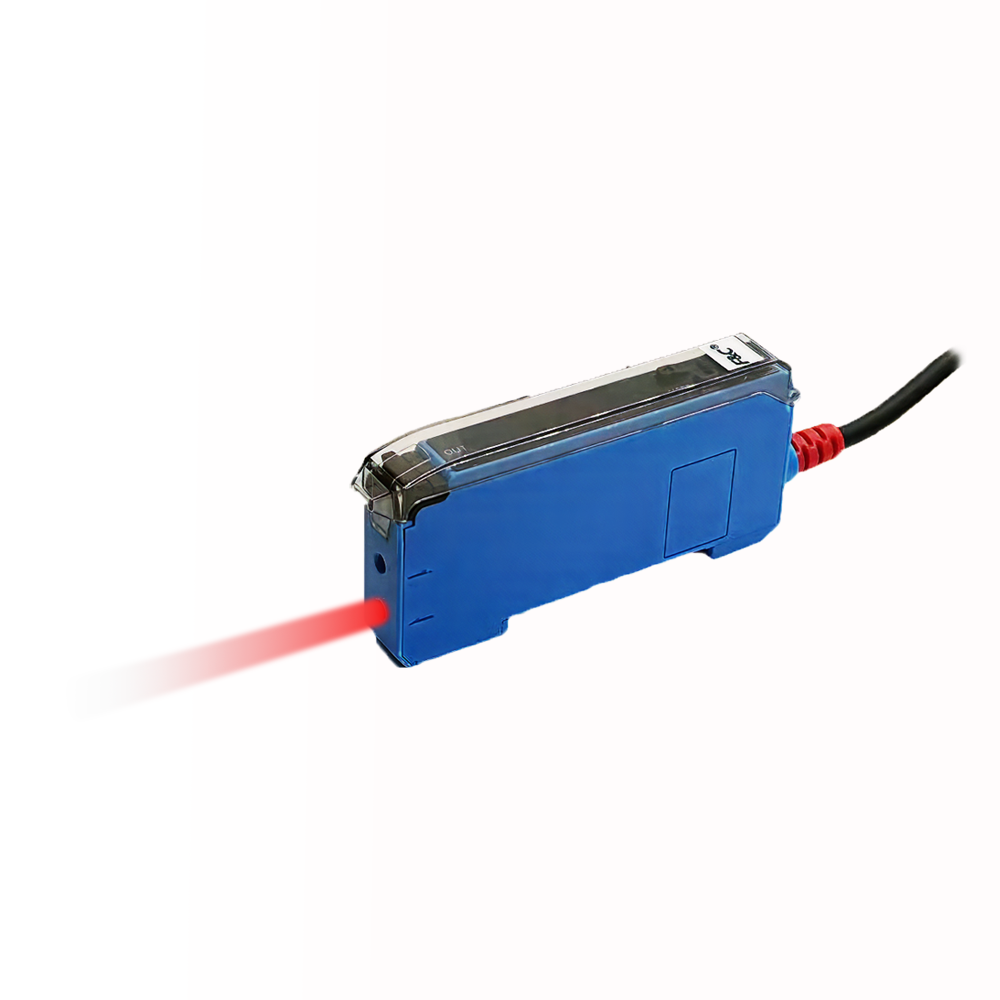

FF-401RGB
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Value |
|---|---|
Light source | 630nm Red + 530nm Green + 470nm Blue |
Operating voltage | 12~24VDC ±10% |
Output mode | NPN (N.O./N.C. adjustable) |
Response time | 50us / 300us / 1ms / 2ms selectable |
Timer | OFF / ON-D / OF-D / SHOT, 1~9999ms adjustable |
Display | 4-digit green + 4-digit red LED |
Ambient temp. | -10~50°C |
Protection rating | IP54 |
Cable | 2M, 3-core flexible cable |
Dimensions | 69 × 33.5 × 10.5 mm |
Weight | ~65g |
Certification | CE |
