| Type | Background Suppression Photoelectric Sensor |
| Sensing Distance | 120 mm |

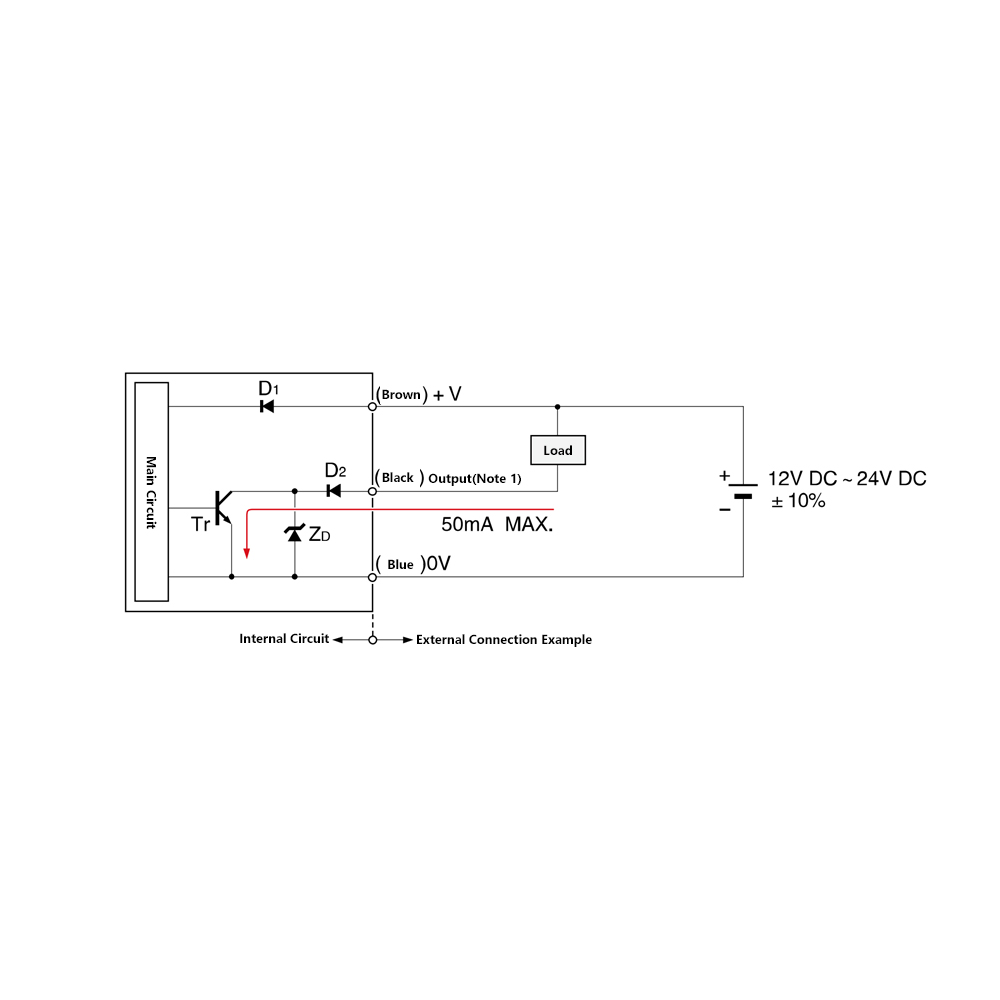

| Output Mode | NPN, Normally Open (NO) |
| Connection | 2m straight-out cable |

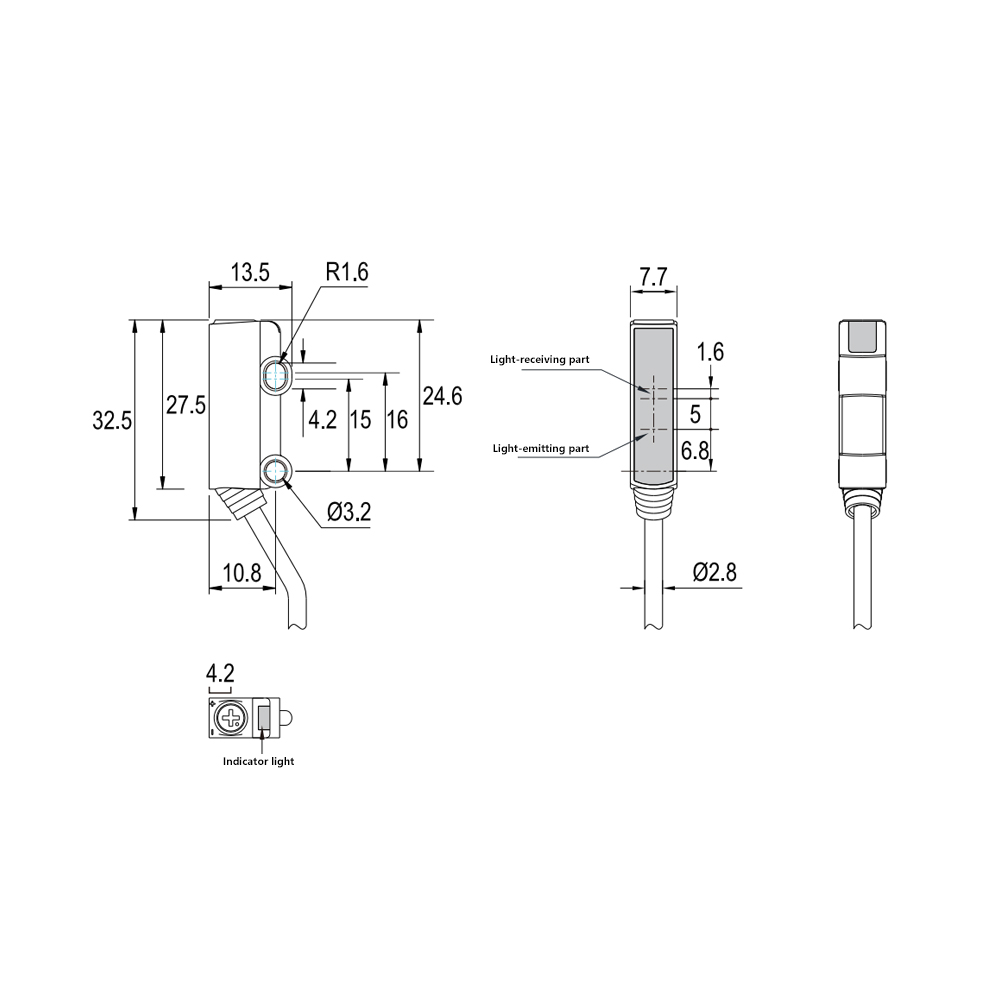

| Mechanical | Housing: ABS+PC+PVC, IP65, Size 27.5×13.5×7.7mm |
| Light Source | 650nm modulated red light, Circular spot |
| Operating Voltage | 12~24 VDC ±10% |
| Response Time | 1 ms |
| Load Current | 50 mA |
| Protection | Reverse polarity & short-circuit protection |
| Ambient Conditions | -10~50℃, 35~85%RH, IP65 |
BGS-SS12N R2M
F&C
| Availability: | |
|---|---|
| Quantity: | |
Parameter | Specification |
|---|---|
Type | Background Suppression Photoelectric Sensor |
Sensing Distance | 120 mm |
Output Mode | NPN, Normally Open (NO) |
Connection | 2m straight-out cable |
Mechanical | Housing: ABS+PC+PVC, IP65, Size 27.5×13.5×7.7mm |
Light Source | 650nm modulated red light, Circular spot |
Operating Voltage | 12~24 VDC ±10% |
Response Time | 1 ms |
Load Current | 50 mA |
Protection | Reverse polarity & short-circuit protection |
Ambient Conditions | -10~50℃, 35~85%RH, IP65 |
